Artikelnummer 1068015

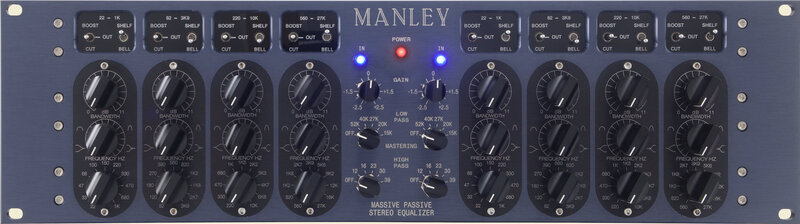

Manley Massive Passive Mastering

The MASSIVE PASSIVE is a two channel, four band equalizer

85500,00 kr/st
Lägg i varukorgen

Ej i lager, kontakta oss för leveranstid

MASTERING VERSION FEATURES

  • All-Passive tone sculpting circuitry

  • Unique Shelf curves use the "bandwidth" control

  • Overlapping and Interleaved Frequency choices

  • Every band switchable to shelf or bell

  • Vacuum tube make-up gain and line drivers

  • Parallel symmetrical topology

  • Premium components throughout

  • HP and LP Filters

  • STEPPED GAIN trims -2.5 to +2.5dB in 11 steps of 1/2dB each

  • Metal Manley mechanically detented GAIN and BANDWIDTH control knobs



MASTERING VERSION SPECIFICATIONS

  • Inputs: Balanced XLR & 1/4” (accepts unbalanced)

  • Outputs: Balanced XLR (accepts unbalanced) & Unbalanced 1/4”

  • Level +4 dBu nominal

  • Bypass Switch bypasses EQ & tube circuits (not hardwire)

  • 44 Frequencies (roughly 1/4 octave spacing)

  • Frequency Range: 22 Hz to 27 kHz

  • EQ Boost/Cut Range : Maximum 11dB boost or cut

  • Nominal Q range: 1.5 to 3 (uniquely active in shelf modes)

  • Frequency Response: +/- 2 dB: 8 Hz to 60 kHz

  • Maximum Output @ 1.5% THD +37 dBv; +26dBv @ 20 Hz

  • THD & Noise (1kHz @ +4 dBu): 0.06%

  • Noise Floor (referred to +4dBu): -85 dB (A Weight)

  • Dynamic Range: 120 dB

  • Tube Complement: 2 x 12AU7, 4 x 6414

  • Auto-mute warmup delay = 20 seconds

  • Power Consumption (120/240VAC): 44 watts

  • Mains Voltage & Frequency (VAC/Hz): Internal Universal Power Supply 90-254 VAC / 50-60Hz

  • Mains Voltage Frequency: 50~ 60Hz

  • Size (3U): L 19” x W 10” x H 5.25”

  • Unit Weight: 15.5 Lbs.

  • Shipping Box: L 23” x W 15” x H 10”

  • Shipping Weight: 26 Lbs.
