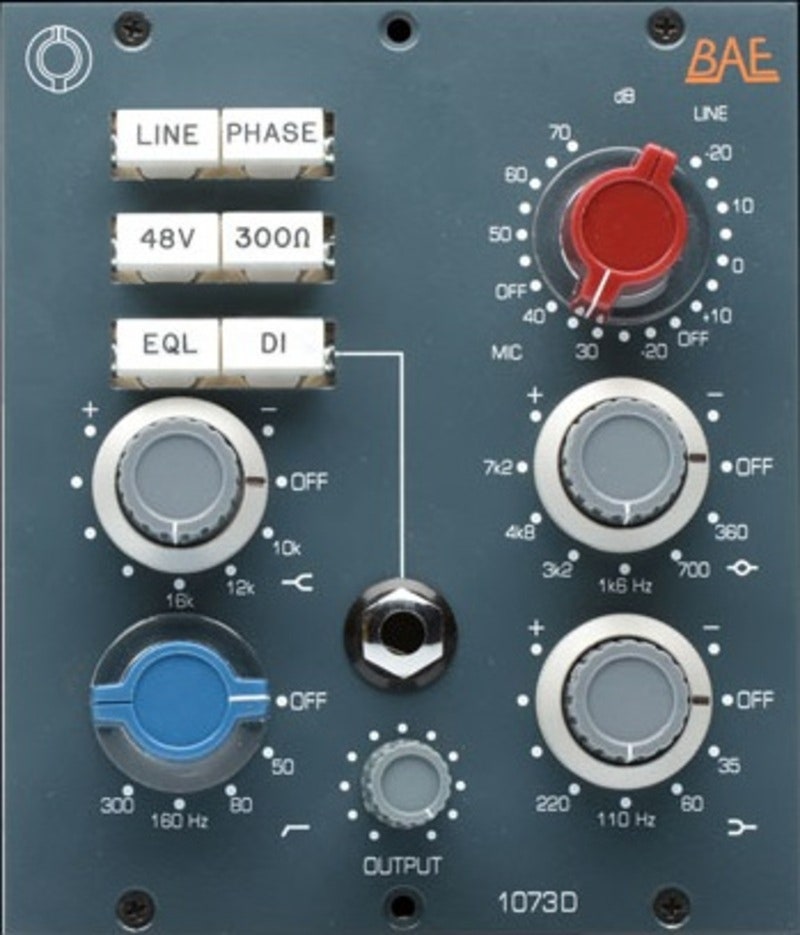

BAE 1073D

The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block.

• High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
• Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
• Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
• High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
• Phase Button: 180°
