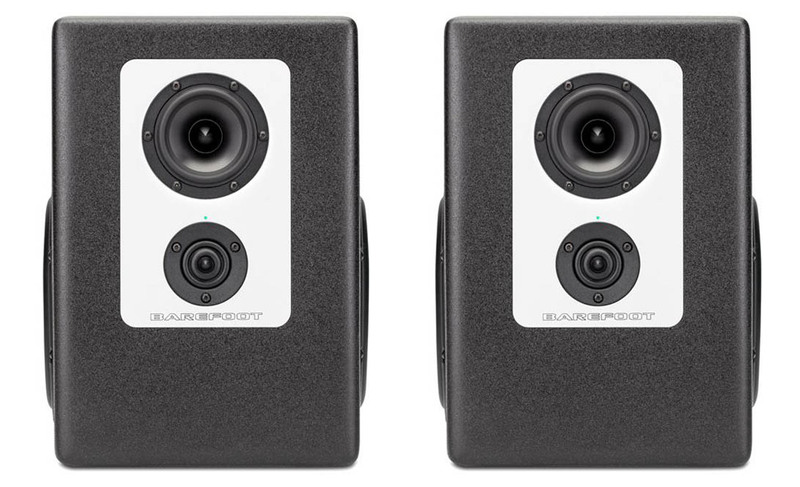

The Footprint01™ is a active 3-way speaker that shares the same Barefoot signature designs — Dual-Force™ technology opposing sub woofers, dual ring radiator tweeter and Multi-Emphasis Monitor Emulation™ technology — as the MicroMain and MasterStack monitor lines. Footprint01 features dual opposing 8-inch paper cone subwoofers, a 4-inch aluminum cone midrange driver and a 1-inch dual ring radiating tweeter, components that all share a lineage with Barefoot’s other products.

The 2-way DSP crossover feeds dual Class D amplifier modules that drive the subwoofers with 500W of power and deliver 150W to the mid- and high-frequency drivers. There is a passive crossover network between the midrange driver and the tweeter. The midrange woofer is positioned above the tweeter in an unusual speaker geometry that creates the acoustic focus in the center of the cabinet.



Features:

Controls:	Input level stepped attenuator, MEME voice select
Input:	Balanced XLR, 50k
Impedance::	Ohm Impedance
Sensitivity:	90dB @ 1 meter with -15dBV input signal (Level control set to 0dB)
Frequency response:	36Hz – 45kHz (±3dB), 45Hz – 40kHz (±1dB)
Amp:	150W (Hight), 500W (Low)
Bass Response:	-3 dB @ 36Hz, Q = 0.707 Slope = 18 dB/octave
Crossover:	250 / 3600 Hz (Passive crossover between Midrange and Tweeter)
Tweeter:	1″ ring radiator, Low distortion motor, Rear waveguide chamber
Midrange:	4.0″ aluminum cone, Aluminum phase plug, Low distortion motor, +/- 3.5 mm linear excursion
Woofers:	8″ paper cone, +/- 9.5 mm linear excursion
Weight:	16Kg / each
