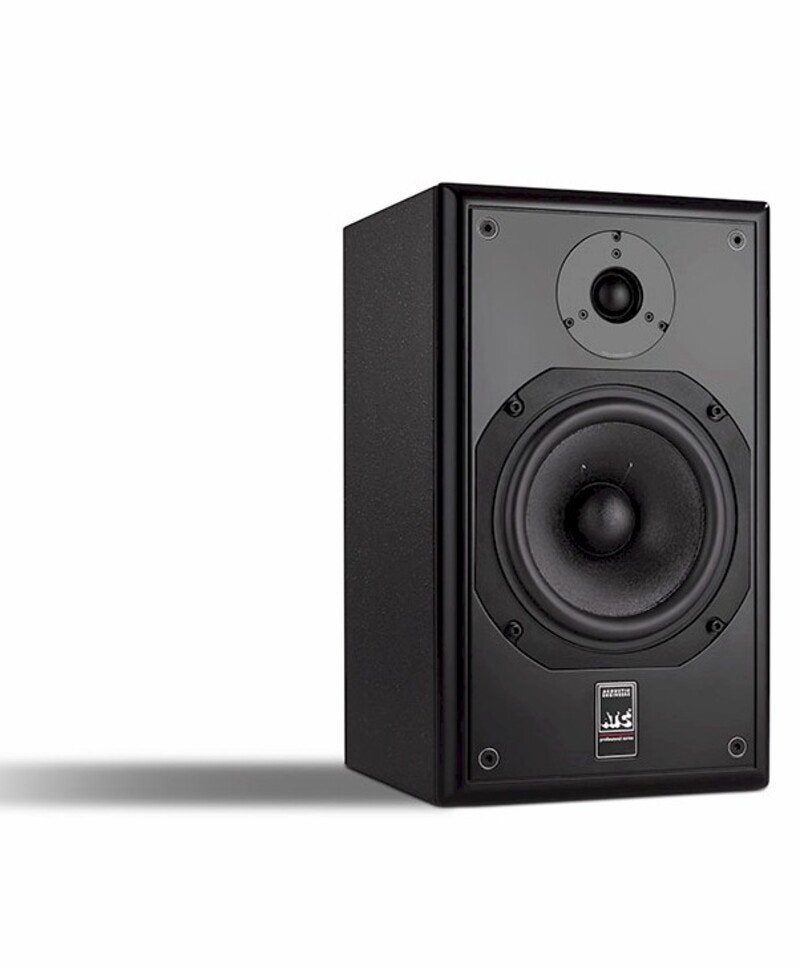

ATC SCM12 Pro
Compact high performance Passive 2-way studio monitor.
Ideally suited to:
– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms.
– surround channels for immersive audio (Auro 3D, Dolby Atmos, DTS-X)
- Proprietary ATC 150mm/6˝ CLD Mid/Bass Driver.
- Proprietary ATC 25mm/1˝ Dual Suspension Tweeter.
- Wide dispersion.
- 6 year warranty.
Drivers: HF ATC 1˝/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
LF ATC 6˝/150mm Constrained Layer Damping (CLD) (SB50-150CLD 8 Ohm)
Amplitude Linearity: 80Hz – 16kHz (+/-2dB)
Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Maximum Continuous SPL: 108dB (per pair @ 1m)
Crossover Frequency: 2.2kHz
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 400x238x235mm/15.7˝x9.4˝x9.3˝
Weight: 11kg/
