Artikelnummer 1043210

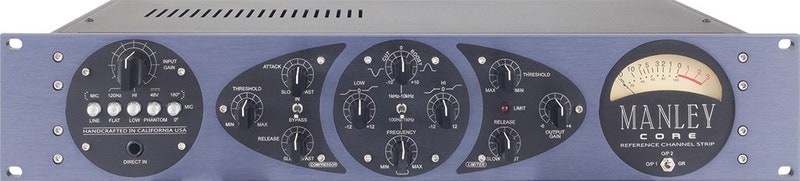

Manley Core Channelstrip

An innovative channel strip that combines Manley’s Greatest Hits with fresh technology.

24990,00 kr/st
Lägg i varukorgen

Ej i lager, kontakta oss för leveranstid

SPECIFICATIONS

  • ALL-TUBE preamplifier audio path using 1 x 12AX7 for gain and 1 x 6922 White Follower
  • Balanced Transformer Coupled XLR Microphone Input Impedance: 1200 Ohms
  • Balanced XLR Line Input Impedance: 10 kOhms
  • Unbalanced 1/4" Direct Input Impedance: 10 Meg Ohm
  • Hi-current drive Direct XLR output Impedance: 50 Ohms
  • Silent conductive plastic INPUT attenuator
  • Microphone preamp high pass filter starting at 120Hz with a 6dB/8va slope
  • Compressor Maximum GAIN REDUCTION: 16 dB
  • Compressor ATTACK time: 60ms slowest CCW, 30ms at 12:00, 5ms fastest CW for 6dB compression
  • Compressor RELEASE time: 1.5s slowest CCW, 1s at 12:00, 100ms fastest CW from 6dB compression
