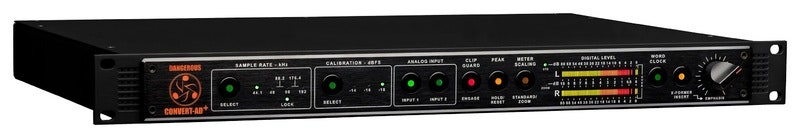

Dangerous Music Convert AD+
Stereo AD converter
- Sample frequency switchable in 6 steps
- For universal compatibility with other devices
- Calibration level in 3 steps switchable for compatibility with other devices
- Two selectable discrete stereo input paths
- "Clip Guard" prevents the red LEDs on the target (such as the DAW) from coming on
- Custom-made digital display with normal and peak hold mode for precise optical feedback
- "Zoom View" For a more accurate, enlarged resolution, only the upper 10dB of the signal level is displayed
- Word Clock with three modes: Internal, External and Master
- X Shaper
- EMPHASIS Shelving EQ / Compressor
- USB port for Mac / PC
- Frequency Response (@ 96kHz): 20Hz to 20kHz (+0 / -0.035dB)
- IMD (SMPTE): IMD 60Hz / 7kHz +4 dBu in: <0.0012%
- Jitter: 16ps (100Hz to 40KHz), 18ps (100Hz to 1MHz)
- Crosstalk attenuation: 118dBu from 15 Hz to 40kHz (+/- 0.04 dB)
- 3-Pin IEC Auto Switching Power Supply, 120V (US) / 240V (Europe)
- Dimensions: 19" 1U
Inputs / outputs:
- 2 Switchable stereo input channels
- 2 AES outputs
- ADAT Optical output
- SPDIF Optical output
- SPDIF COAX output
