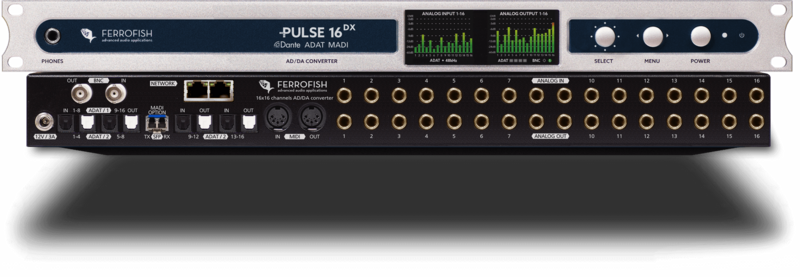

Ferrofish Pulse16 DX

The PULSE16 DX is much more than a 16 x 16 channel AD / DA converter. In addition to studio-grade analog inputs and outputs up to 96kHz, the PULSE16 DX offers an impressive number of digital interfaces, ready for any task. All equipment, whether analog, ADAT, or MADI is brought together into the device, and can be distributed over a sophisticated routing matrix in groups of 8 channels. And that’s not all: The Dante interface with 64 x 64 channels (also integrated into the routing matrix), redundantly implemented via two RJ45 sockets, connects the PULSE16 DX to the network: Dante opens up a new dimension of flexibility. No matter which analog or digital signals are to be connected: the PULSE16 DX does the job.

• Cirrus Logic 24bit / 96kHz converter
• 2 x TFT display for levels and settings for complete overview of all levels and settings on the device
• Jacks for quick and easy cabling
• All 32 analogue channels can be used at 96 kHz
• Input and output volume of all analog channels can be switched in 1dB increments (-8dBu to + 20dBu)
• Circuit for active jitter reduction
• Fanless
• 16 Analogue inputs 6.3mm jack balanced
• 16 Analogue outputs 6.3 mm jack balanced
• 4 ADAT inputs and outputs
• 1 MIDI input and output
• 1 Word clock input and output
• Headphone output 6.3 mm jack
• 2 RJ45 Dante
• Power supply connector A / B, 12VDC / 3A
• Dimensions: 19", 1 U
