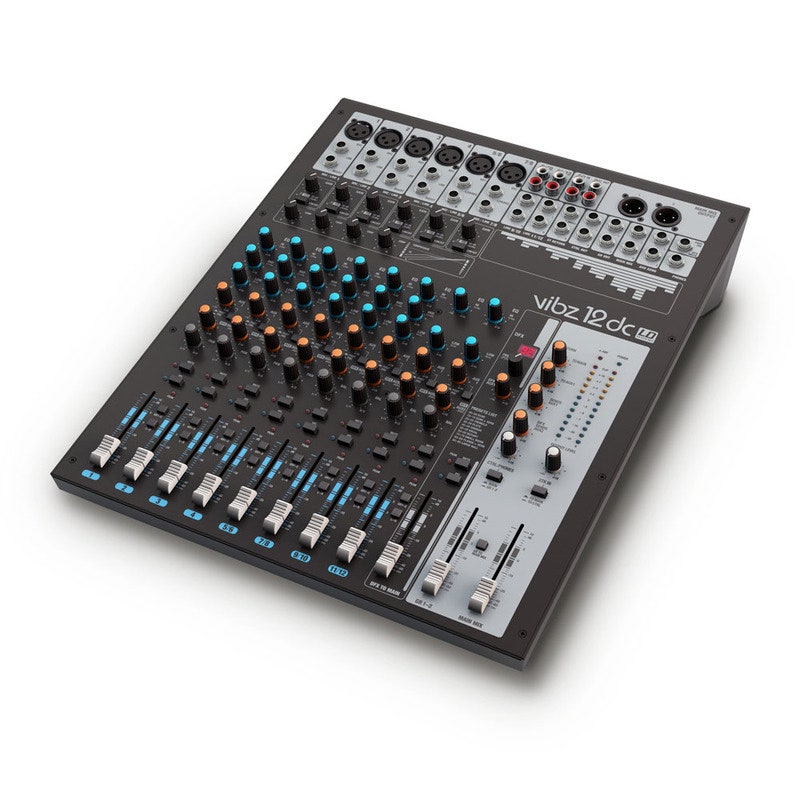

LD Systems VIBZ 12 DC

The VIBZ 12 DC is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.

Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.

The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 DC also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.

With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 DC is the perfect choice for live performances, installations and demanding home recording applications.

Product Type: mixer
Type: live
Number of Channels: 12
Mono Mic/Line Input Channels: 4
Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
Mono Mic Input Type: electronically balanced
Frequency Response Mono Mic Input: 10 - 45,000 Hz
Amplification Range Mono Mic Input: 0 - +50 dB (channel 1-4)
Channel Insert: 4
Channel Insert Connections: 6.3 mm stereo jack (TIP= send / RING= return)
Channel Crosstalk: 62 dB
THD Mono Mic Input: 0.0058 %
Impedance Mono Mic Input: 4 kOhm
S/N Ratio Mono Mic Input: 113 dB
Mono Line Input Type: electronically balanced
Frequency Response Mono Line Input: 10 - 45,000 Hz
Amplification Range Mono Line Input: 0 - +50 dB
THD Mono Line Input: 0.0045 %
Impedance Mono Line Input: 21 kOhm
S/N Ratio Mono Line Input: 116 dB
Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX 2 (Post), Pre/Post for DFX/AUX 1, DFX/AUX 1, 3 band-EQ (Low, Mid, High), Compressor (channel 1-4) Low-Cut (channel 1-7/8), Gain
Low Cut: 95 Hz
Phantom Power: +48 V DC switchable
Compressor: Yes, sliding adjustable characteristic
Stereo Line Input Channels: 4
Stereo Line Input Channels: 2 x 6.3 mm stereo jack (Lmono,R) (channel 5/6 + 7/8) 2 x 6.3 mm stereo jack (channel 9/10 + 11/12) 4 x RCA (Cinch) (Channel 9/10 + 11/12)
Stereo Line Input Type: unbalanced / electronically balanced
Frequency Response Stereo Line Input: 10 - 45,000 Hz
Amplification Range Stereo Line Input: 0 - +50 dB
Channel Crosstalk: 62 dB
THD Stereo Line Input: 0.0045 %
Impedance Stereo Line Input: 3.7 kOhm
S/N Ratio Stereo Line Input: 116 dB
Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Stereo Channel Equalizer Mids: +/- 15 dB 2,500 Hz (channel 5/6 + 7/8)
Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Stereo Line Input Channels: Channel volume, Balance, AUX 2 (Post), Pre/Post for DFX/AUX 1, DFX/AUX1, 3 band EQ (Low, Mid, High), channel 5/6 + 7/8, 2-band EQ (Low, High) channel 9/10 + 11/12 Low-Cut channel 5/6 + 7/8 Gain channel 5/6 + 7/8
Main Section:
AUX/Effect Send Channels: 2
AUX/Effect Send Connections: 6.3 mm stereo jack
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connections: 6.3 mm stereo jack
Stereo Tape Output Channel: 1 x stereo
Stereo Tape Output Connections: 2 x RCA (Cinch)
Stereo Tape Input Channel: 1 x stereo
Stereo Tape Input Connections: 2 x RCA (Cinch)
Balanced Stereo Main Outputs: 1
Balanced Stereo Main Output Connections: 2 x XLR
Impedance Balanced Stereo Main Outputs: 120 Ohm
Max. Level Balanced Stereo Main Outputs: +23 dBu
Stereo Control Room Outputs: 1
Stereo Control Room Output Connections: 6.3 mm stereo jack
Group Outputs: 2
Group Output Connections: 6.3 mm stereo jack
Headphone Output: 1
Headphone Output Connections: 6.3 mm stereo jack
Minimum Headphone Impedance: 30 Ohm
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
No. of Presets: 100
Footswitch Connection DFX Mute: 6.3 mm stereo jack

Control Elements Main Section: DFX To Main Volume, PFL, DFX Mute, DFX TO AUX Volume, Presets, Group 1-2 Volume, Group 1-2 assignment to Main MIX, CTRL / Phones assignment (Main/Group 1-2) Volume Control CTRL / Phones AUX 2 Send Volume, Aux 1 Send Volume, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Master Volume 2TK assignment (Main / CTRL) volume 2TK IN, Phantom Power, Power Display Elements: 12 segment level meter, Phantom Power, Power, Channel Peak, Channel PFL, Channel Mute, DFX TO MAIN, PFL, DFX Peak

Power Supply: AC 100-240 V / 50-60 Hz
Power Connection: IEC power socket
Width: 350 mm
Height: 98 mm
Depth: 440 mm
