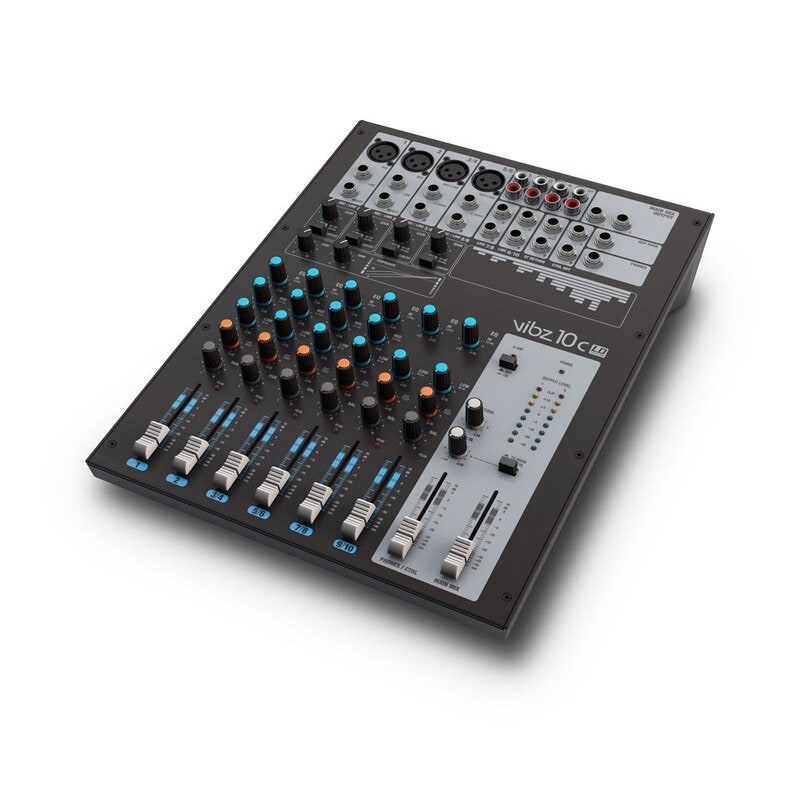

LD Systems VIBZ 10C

The VIBZ 10 C is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.

For an effective sound adjustment, the VIBZ 10 C has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 C also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.

With its transparent, detailed sound and easy operation, VIBZ 10 C is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 C on microphone stands are available as accessories.

Product Type: mixer
Type: live
Number of Channels: 10
Mono Mic/Line Input Channels: 4
Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
Mono Mic Input Type: electronically balanced
Frequency Response Mono Mic Input: 10 - 45,000 Hz
Amplification Range Mono Mic Input: 0 - +50 dB
Channel Insert: 2
Channel Insert Connections: 6.3 mm stereo jack (TIP= send / RING= return)
Channel Crosstalk: 62 dB
THD Mono Mic Input: 0.0058 %
Impedance Mono Mic Input: 4 kOhm
S/N Ratio Mono Mic Input: 113 dB
Mono Line Input Type: electronically balanced
Amplification Range Mono Line Input: 0 - +50 dB
Frequency Response Mono Line Input: 10 - 45,000 Hz
THD Mono Line Input: 0.0045 %
Impedance Mono Line Input: 21 kOhm
S/N Ratio Mono Line Input: 116 dB
Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX (Post), 3 band EQ (Low, Mid, High), Compressor (channel 1+2) Low-Cut, Gain
Phantom Power: +48 V DC switchable
Low Cut: 95 Hz
Compressor: Yes, sliding adjustable characteristic
Stereo Line Input Channels: 4
Stereo Line Input Channels: 2 x 6.3 mm stereo jack (Lmono,R) (channel 3/4 + 5/6) 2 x 6.3 mm stereo jack (channel 7/8 + 9/10) 4 x RCA (Cinch) (Channel 7/8 + 9/10)
Stereo Line Input Type: unbalanced / electronically balanced
Frequency Response Stereo Line Input: 10 - 45,000 Hz
Amplification Range Stereo Line Input: 0 - +50 dB
THD Stereo Line Input: 0.0045 %
Impedance Stereo Line Input: 3.7 kOhm
S/N Ratio Stereo Line Input: 116 dB
Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Stereo Channel Equalizer Mids: +/- 15 dB 2,500 Hz (channel 3/4 + 5/6)
Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Stereo Line Input Channels: Channel volume, Balance, AUX (Post), 3 band EQ (Low, Mid, High), channel 3/4 + 5/6, 2-band EQ (Low, High) channel 7/8 + 9/10 Low-Cut channel 3/4 + 5/6 Gain channel 3/4 + 5/6
Main Section:
AUX/Effect Send Channels: 1
AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connections: 6.3 mm stereo jack
Stereo Tape Output Channel: 1 x stereo
Stereo Tape Output Connections: 2 x RCA (Cinch)
Stereo Tape Input Channel: 1 x stereo
Stereo Tape Input Connections: 2 x RCA (Cinch)
Unbalanced Stereo Main Outputs: 1
Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
Impedance Unbalanced Stereo Main Outputs: 120 Ohm
Max. Level Unbalanced Stereo Main Outputs: +20 dBV
Stereo Control Room Outputs: 1
Stereo Control Room Output Connections: 6.3 mm stereo jack
Headphone Output: 1
Headphone Output Connections: 6.3 mm stereo jack
Minimum Headphone Impedance: 30 Ohm
Digital Effects Processor: no
No. of Presets: none
Footswitch Connection DFX Mute: n/a
Control Elements Main Section: Headphones / Control Room Volume 2TK In, Stereo Return Volume, Phantom Power, Master Volume, 2TR allocation (Main, CTRL Room)
Display Elements: 8-segment Level Meter, Phantom Power, Power, Channel Peak
Power Supply: 18 V AC - 1 A, External PSU
Width: 265 mm
Height: 78 mm
Depth: 352 mm
