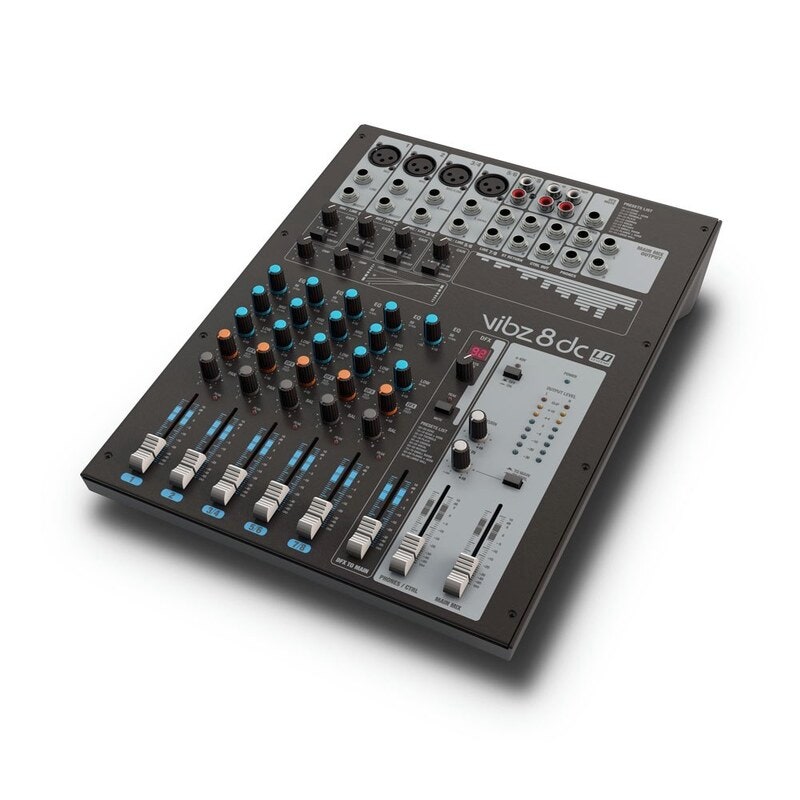

LD Systems VIBZ 8DC

Four balanced microphone inputs with high quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 DC into a flexible sound control unit. The microphone channels are switchable to line level and are equipped with high quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the VIBZ 8 DC has very precise 3-band EQs with practical selectable mids. The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 DC also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 8 DC on microphone stands are available as accessories.

Product Type: mixer
Type: live
Number of Channels: 8
Mono Mic/Line Input Channels: 4
Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
Mono Mic Input Type: electronically balanced
Frequency Response Mono Mic Input: 10 - 45,000 Hz
Amplification Range Mono Mic Input: 0 - +50 dB
Channel Insert: 2
Insert: 6.3 mm stereo jack (TIP= send / RING= return)
Channel Crosstalk: 62 dB
THD Mono Mic Input: 0.0058 %
Impedance Mono Mic Input: 4 kOhm
S/N Ratio Mono Mic Input: 113 dB
Mono Line Input Type: electronically balanced
Amplification Range Mono Line Input: 0 - +50 dB
THD Mono Line Input: 0.0045 %
Impedance Mono Line Input: 21 kOhm
S/N Ratio Mono Line Input: 116 dB
Frequency Response Mono Line Input: 10 - 45,000 Hz
Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, DFX/AUX (Post), 3 Band-EQ (Low, Mid, High), Compressor (Kanal 1+2) Low-Cut, Gain
Phantom Power: +48 V DC switchable
Low Cut: 95 Hz
Compressor: yes
Stereo Line Input Channels: 3
Stereo Line Input Connections: 2 x 6.3 mm stereo jack, (Lmono,R)
Stereo Line Input Type: unbalanced
Frequency Response Stereo Line Input: 10 - 45,000 Hz
Amplification Range Mono Line Input: 0 - +50 dB
Channel Crosstalk: 62 dB
THD Stereo Line Input: 0.0045 %
Impedance Stereo Line Input: 3.7 kOhm
S/N Ratio Stereo Line Input: 116 dB
Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Stereo Channel Equalizer Mids: +/- 15 dB 2,500 Hz (channel 3/4 + 5/6)
Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Stereo Line Input Channels: Channel volume, Balance, DFX/AUX (Post), 3 Band-EQ (Low, Mid, High), channel 3/4 + 5/6, 2-band EQ (Low, High) channel 7/8 Low-Cut, Gain channel 3/4 + 5/6
Main Section:
AUX/Effect Send Channels: 1
AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
Stereo Tape Output Channel: 1 x stereo
Stereo Tape Output Connections: 2 x RCA (Cinch)
Stereo Tape Input Channel: 1 x stereo
Stereo Tape Input Connections: 2 x RCA (Cinch)
Unbalanced Stereo Main Outputs: 1
Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
Impedance Unbalanced Stereo Main Outputs: 120 Ohm
Max. Level Unbalanced Stereo Main Outputs: +20 dBV
Stereo Control Room Outputs: 1
Stereo Control Room Output Connections: 6.3 mm stereo jack
Headphone Output: 1
Headphone Output Connections: 6.3 mm stereo jack
Minimum Headphone Impedance: 30 Ohm
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
No. of Presets: 100
Footswitch Connection DFX Mute: 6.3 mm stereo jack
Control Elements Main Section: DFX To Main Volume, DFX Mute switch, DFX Presets Headphones / Control Room Volume 2TK Volume, Stereo Return Volume, Phantom Power, Master Volume, 2TR assignment (Main, CTRL Room)
Display Elements: 8-segment Level Meter, Phantom Power, DFX Peak / Mute, Power, Channel Peak
Power Supply: 18 V AC - 1 A, External PSU
Width: 265 mm
Height: 77 mm
Depth: 350 mm
