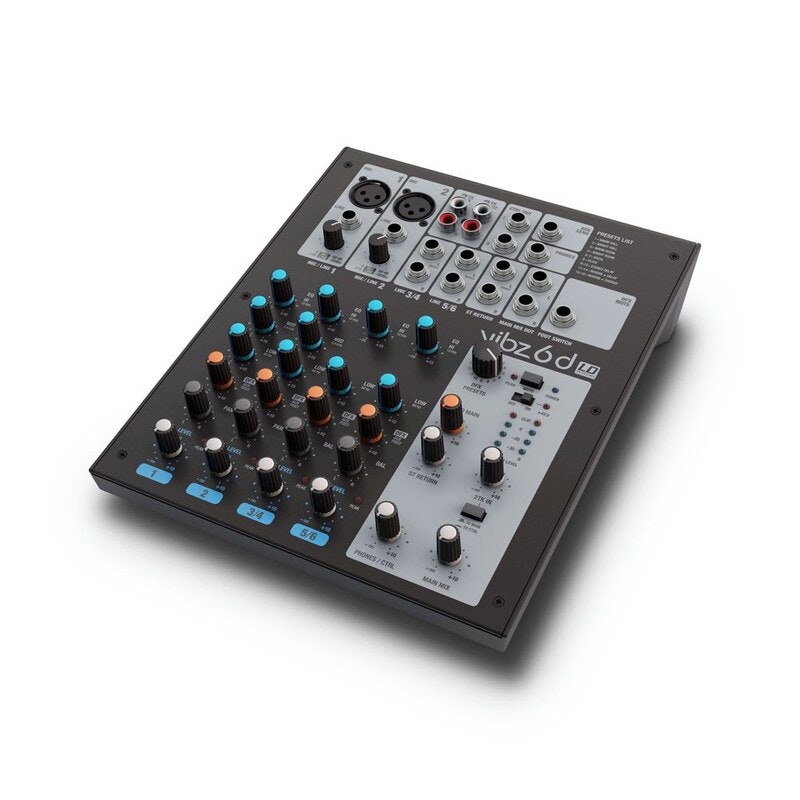

LD Systems VIBZ 6D

The VIBZ 6 D is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible, and an effects loop. The master section of the VIBZ 6 D is equipped with adjustable monitor outputs, a headphone jack and 16 digital effects presets, which are foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly. A foot switch for the effects section and an adapter for mounting the VIBZ 6 D on microphone stands are available as accessories.

Product Type: mixer
Type: live
Number of Channels: 6
Mono Mic/Line Input Channels: 2
Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
Mono Mic Input Type: electronically balanced
Frequency Response Mono Mic Input: 10 - 45,000 Hz
Amplification Range Mono Mic Input: 0 - +50 dB
Insert: n/a
Channel Crosstalk: 62 dB
THD Mono Mic Input 0.0058 %
Impedance Mono Mic Input: 4 kOhm
S/N Ratio Mono Mic Input: 113 dB
Mono Line Input Type: electronically balanced
Amplification Range Mono Line Input: 0 - +50 dB
THD Mono Line Input: 0.0045 %
Impedance Mono Line Input: 21 kOhm
S/N Ratio Mono Line Input: 116 dB
Frequency Response Mono Line Input: 10 - 45,000 Hz
Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, DFX/AUX (Post), 3 Band-EQ (Low, Mid, High), Gain
Phantom Power: +48 V DC switchable
Low Cut: n/a
Compressor: n/a
Stereo Channels Stereo Line Input Channels: 2
Stereo Line Input Channels: 6.3 mm mono jack (Lmono, R)
Stereo Line Input Type: unbalanced
Frequency Response Stereo Line Input: 10 - 45,000 Hz
Channel Crosstalk: 62 dB
THD Stereo Line Input: 0.0045 %
Impedance Stereo Line Input: 3.7 kOhm
S/N Ratio Stereo Line Input: 116 dB
Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Stereo Channel Equalizer Mids: n/a
Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Stereo Line Input Channels: Channel volume, Balance, DFX/AUX (Post), 2 Band-EQ (Low, High)
Main Section:
AUX/Effect Send Channels: 1
AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
Stereo Tape Output Channel: 1 x stereo
Stereo Tape Output Connections: 2 x RCA (Cinch)
Stereo Tape Input Channel: 1 x stereo
Stereo Tape Input Connections: 2 x RCA (Cinch)
Unbalanced Stereo Main Outputs: 1
Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
Impedance Unbalanced Stereo Main Outputs: 120 Ohm
Max. Level Unbalanced Stereo Main Outputs: +20 dBV
Stereo Control Room Outputs: 1
Stereo Control Room Output Connections: 6.3 mm stereo jack, unbalanced
Headphone Output: 1
Minimum Headphone Impedance: 30 Ohm
Headphone Output Connections: 6.3 mm stereo jack
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
No. of Presets: 16
Footswitch Connection DFX Mute: 6.3 mm stereo jack
Control Elements Main Section: Headphones / Control Room Volume, Stereo Return Volume, DFX To Main Volume, DFX Presets, Master-Volume, 2TR assignment (Main, CTRL Room), 2TK Volume, Phantom Power, DFX Mute switch
Display Elements: 4-segment Level Meter, Phantom Power, DFX Peak / Mute, Power, Channel Peak
Power Supply: 18 V AC - 1 A, External Power Pack
Width: 209 mm
Height: 68 mm
Depth: 260 mm
