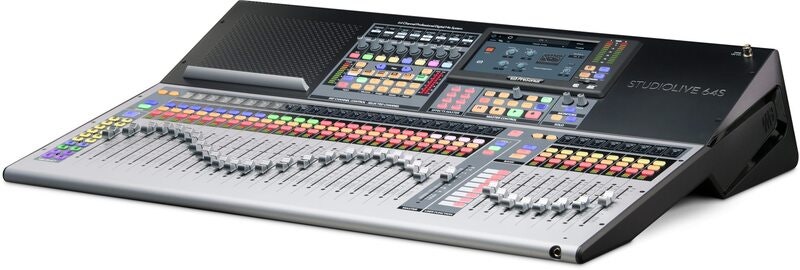

Presonus StudioLive 64S console

Features

• Powered by the new quad-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 76 input-channel digital mixer with 33 touch-sensitive motorized faders
  • 64 channels (individually sourced from any of the 32 local digitally controlled XMAX mic/line inputs or any AVB, USB, or SD input)
  • 2 balanced stereo aux inputs
  • 1 stereo tape input (RCA, Bluetooth, USB, AVB or SD)
  • 8 FLEX FX returns
  • 1 Talkback
• 43 mix buses
  • 32 FlexMixes (Aux, Subgroup, Matrix)
  • 8 dedicated FLEX FX buses
  • Stereo Main bus
  • Main Mono/Center bus with per-channel level send and Center Divergence
• 526 simultaneous processors
  • HPF
  • Gate / Expander
  • Compressor with Fat Channel plug-in models
  • 4-band/6-band parametric EQ with Fat Channel plug-in models
  • Limiter
  • 31-band Graphic EQ
  • 8 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
• 24 DCAs to control groups of channels
• 128-channel (64x64) recording over USB
• Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
• AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
• User Profiles for managing multiple operators with custom permissions
• Per channel digital patching from any analog, AVB, USB, or SD Card source
• DAW Control
  • Advanced Studio One control integration
  • MCU emulation mode optimized for Logic
  • HUI emulation mode optimized for Pro Tools
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
• Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
• Capture multitrack software included
  • Automated Virtual Soundcheck
  • Store StudioLive mix scenes with your audio
• Advanced Studio One integration (Studio One Artist Included)
  • XMAX mic preamp control from Studio One
  • Control Fat Channel parameters from Studio One mixing console

Introducing the StudioLive 64S: Overview (1/4)



Introducing the StudioLive 64S: User Profiles and Permissions (2/4)



Introducing the StudioLive 64S: User Profile Workflows (3/4)



Introducing the StudioLive 64S: Mono Mix Outputs (4/4)
