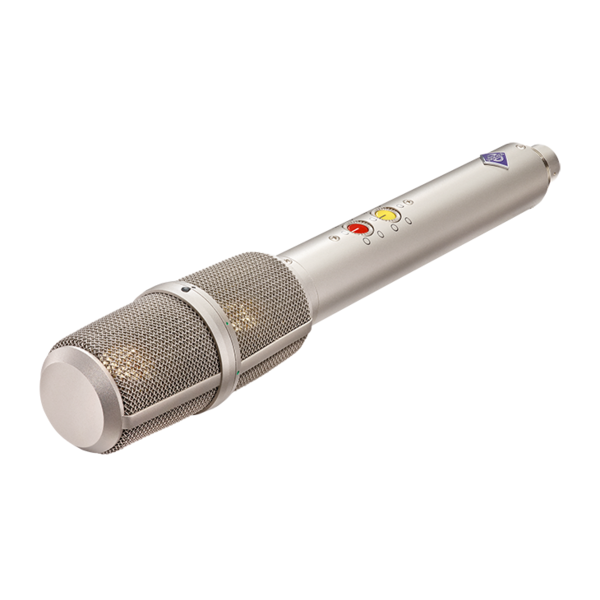

Neumann USM-69i

The USM 69 i is a one-point stereo microphone for all coincident stereo techniques such as XY, MS, and Blumlein. Each of the two large diaphragm capsule systems has its own pattern selector with 5 positions; the upper system can be rotated over a range of 270°. The USM 69 i can also be used in mono with two directional characteristics simultaneously.

• Two Independent large diaphragm systems with 5 directional characteristics: Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, Figure-8

• Same large diaphragm capsules as U 87 Ai

• Upper system rotates up to 270° for XY and MS techniques

• Transformer balanced circuit with very low self-noise

• Upper capsule rotates against the lower capsule over 270°
• Frequency response: 20 - 20,000 Hz
• Max. SPL (sound pressure level) for k <0.5%: 132 dB
• Dimensions (diameter x length): 30 + 48 mm x 293 mm
• Weight: 510 g
