Manley Reference Cardioid
Manley REF-C Mikrofonen som byggde det svenska popundret! Det är nog lättare att räkna upp vilka hits under 90-talet som inte gjordes med en Ref-C än dom som gjorde det. Stormembran, rör, njurkaraktäristik. Kaxigt ljud!

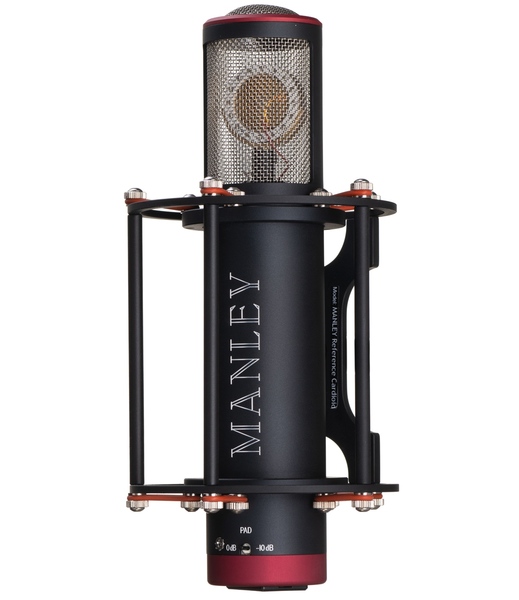

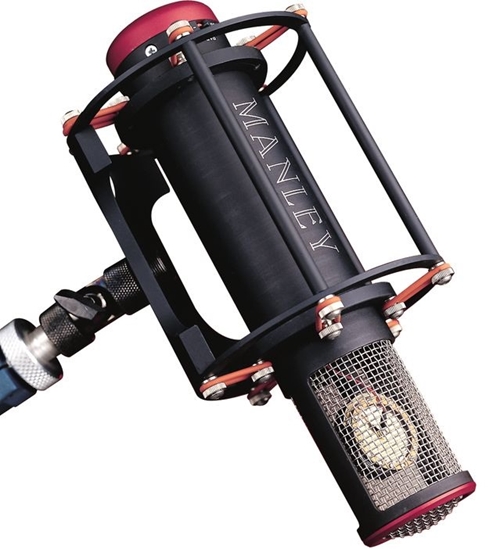

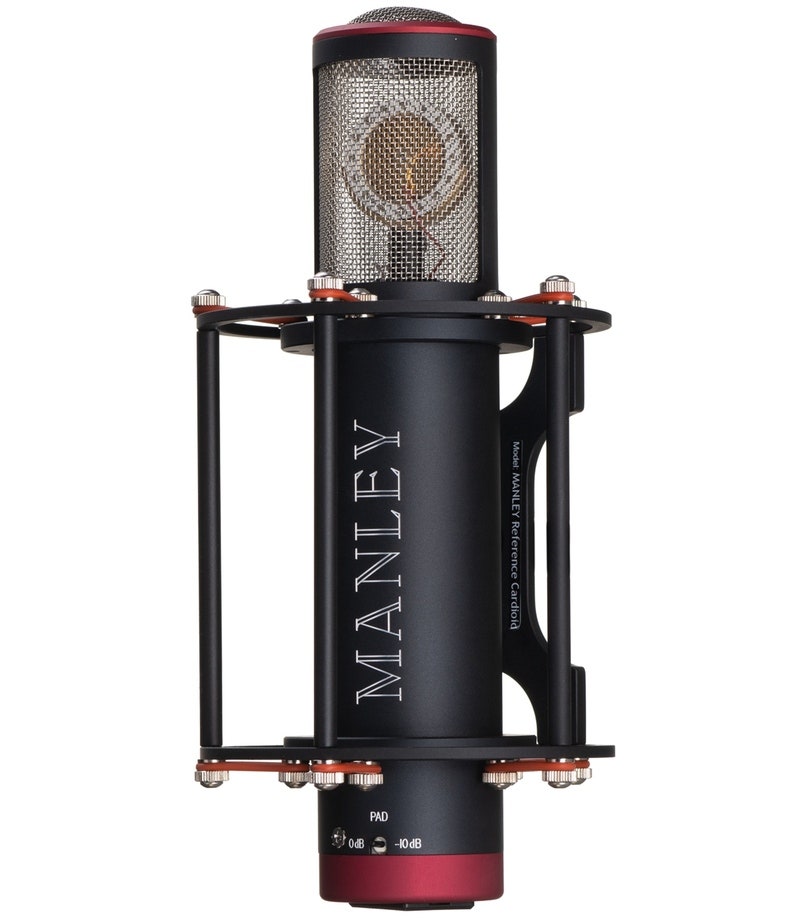

The Manley Reference Cardioid Tube Microphone has that “finished” sound right out of the box, making it the favorite vocal mic of top producers and voiceover artists alike. This is modern pop music’s go-to mic: flattering, present, and larger-than-life. Some refer to the Manley RefC as the “Just Add Talent” microphone.
- All-Tube triode design utilizes 12AX7 or 7025EH (Previous versions used 12AT7 and 6072.)
- -10 dB switchable pad
- Frequency response: 10Hz-30KHz
- Sensitivity: 17mV/Pa
- Noise typically -120dB EIN
- Max SPL: 150dB
- Output Impedance: 250 Ohms
- Weight: 2.25 lbs (mic)
- Size: mic body 2" diameter x 9.7" long x 4.5" (mic suspension outside diameter)
- Shipping weight: 15 lbs
POWER SUPPLY
As of 6/2020 SMPS Power Supply versions REFCARD7P####:
- Universal MANLEY POWER™ Switch Mode Power Supply; works worldwide
- Power Consumption: 8 Watts
- Weight / Dims: 2.35 lbs / 5 x 3.3 x 9.3” (with handle)
- Fuse: 250VAC 2A SLO BLO Ceramic - 5mm x 20mm
- Input Voltage: 90VAC to 250VAC (Universal)
- Mains Frequency: 50~60Hz
