Artikelnummer 1075248

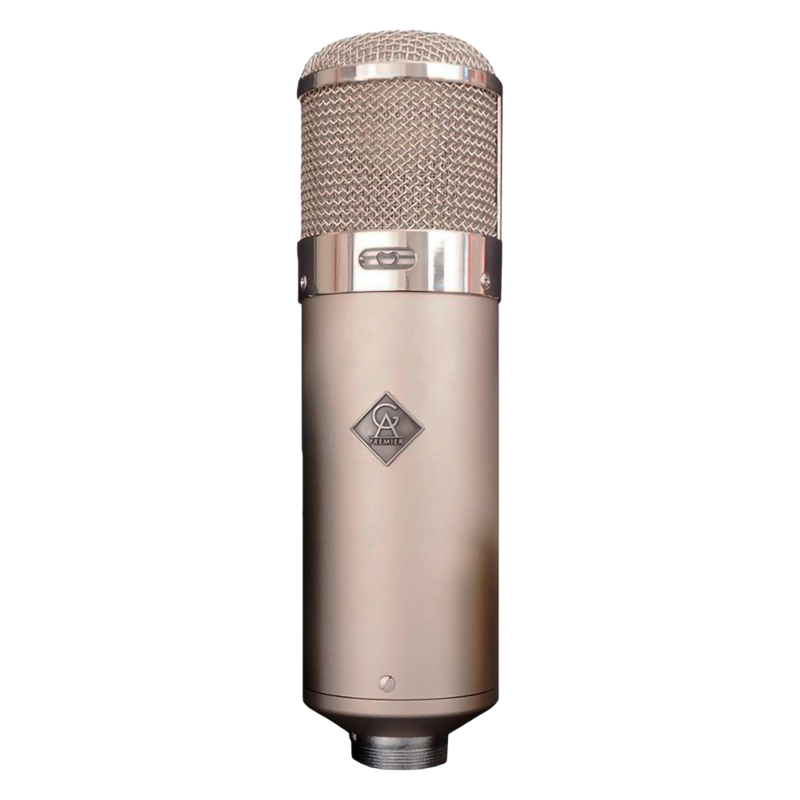

Golden Age Premier GA-47 Extended

Handwired Large-diaphragm Tube Condenser Microphone

35990,00 kr/st
Lägg i varukorgen

Ej i lager, kontakta oss för leveranstid

The Golden Age Project GA-47 Extended is designed for users who are looking for the same great sound as in the Golden Age Premier GA-47 but need some added flexibility. The GA-47 Extended has a removable capsule head in the same format as the vintage U47, meaning that it is possible to use vintage heads on the GA-47 Extended or one of GAP heads on a vintage U47.

It also features the polar pattern switch on the front of the microphone below the grille and an aviation style cable socket for an even stronger vintage vibe.

The standard capsule head is the GA-47 Extended HV, using a M7/K47-style vintage style capsule (model no. S47d) with a darker tone, giving the GA-47 Extended just about the same sound as our standard GA-47 model. It also includes the GA-47 Extended HM capsule head using the K67-style capsule (model no. D35d) that features a brighter and more modern tone.
Microphone body and grille

The microphone body is made of brass, the grille is made of iron. The grille, which is a critical component affecting the sound character, is similar to the one in the U47.

Features

  • High End, no compromise components and build quality
  • Built in many details according to the vintage U47 including the polar pattern switch below the grille and switchable capsule head
  • -10 dB PAD switch on the power supply for high SPL instrument recordings like kick drum
  • Handmade in small series
  • Capsules selected with very tight tolerances
  • Point-to point wiring with silver-plated copper wire, a printed circuit board is only used for the ground connections
  • All soldering points made with Mudorf Msolder Supreme SilverGold solder (Sn88, 6Cu, 1,8Ag, 9,5Au)
  • Solid wood microphone box, tweed style system flight case
  • Every mic, box and PSU has a badge with the serial number

Specifications

  • Package Contents: GA-47 Extended mic with two capsule heads, power supply, cable, shock mount, solid wood box, and tweed-style flight case
  • Tube or Solid State: Tube
  • Tube Type: NOS Telefunken 800
  • Capsule Type: 34 mm M7/K47-style vintage style capsule
  • Transducer Type: Condenser
  • Polar Pattern: Cardioid, Omni-Directional, Variable-Pattern
  • Number of Microphones: Single Microphone
  • Impedance: 200 ohms
  • Frequency Range: 20 Hz – 20 kHz
  • Input Pad: -10 dB
  • Sensitivity: -38.4 dBV/Pa (12 mV)
  • Max. SPL: 140 dB
  • Analog or Digital: Analog
