Groove Synthesis 3rd Wave
Artikelnummer 1079146Avancerad 24-Voice Wavetable Synthesizer. Nu med Sampling!!!
Finns i butik
1-3 dagar
Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert - Klarna köparskydd
67700 kr/st
62999 kr/st
Kampanjpris 18 dagar, 11h kvar

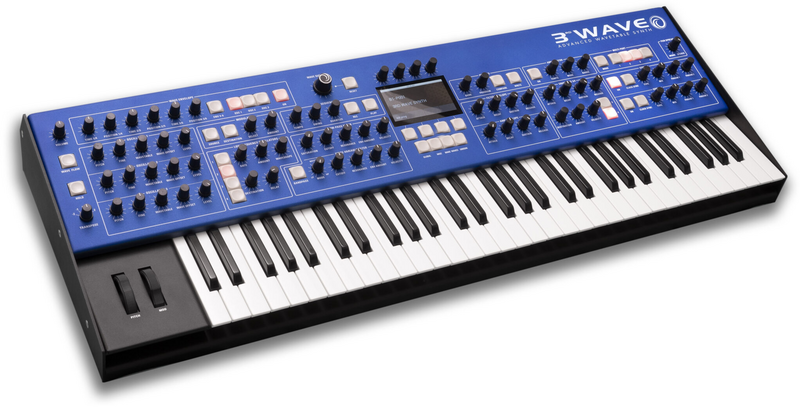

The 3rd Wave is a 24-voice, 4-part multi-timbral wavetable synth with 3 oscillators per voice, analog low-pass filters, a state-variable filter, 6-stage wave envelopes per oscillator, and an industry-first Wavemaker™ tool that allows users to create custom wavetables in a single step through its proprietary sample-to-wave technology. Each of its three oscillators can generate a classic PPG-era wavetable, a modern high-resolution wavetable, or an analog modeled waveform.
SOUND ENGINE
3 High-resolution Digital Oscillators Per Voice
- 48 wavetables with 64 waves per table (32 legacy PPG waves with room for another 16 of this type)
- 32 High resolution user wavetables + 32 factory high resolution wavetables
- 7 high-resolution modeled analog waveforms (sine, saw, triangle, supersaw, pulse, white noise, pink noise)
- 32 user wavetables that are a modern high resolution format
- VCO sync
- Linear FM
- 6-stage wave envelope per oscillator with variable time and position that can be looped
- Optional wave flow for smooth or stepped wave transitions
- Unison mode with variable voice count
- Per-oscillator glide
1 Analog Low-pass Filter
- Dave Rossum designed, classic, 2140 low-pass resonant filter
- 24 db per octave slope
- variable saturation amount
- optional resonance compensation
1 State-Variable Filter
- 12 db per octave slope
- Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode
4 ADSR+ Delay Envelopes
- Filter and Amplifier envelopes switchable between exponential and vintage PPG-style response
- Freely assignable to multiple modulation destinations
4 Low-Frequency Oscillators
- Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
- Variable delay
- Note reset
- Syncable to master clock BPM
2 Digital Effects
- BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker, ring mod, room reverb, hall reverb, super plate reverb
- Syncable to master clock BPM
- Parameters modulatable via mod matrix
WAVEMAKER TOOL
Built-In Custom Wavetable Maker
- “Sample-to-wave” functionality. Connect an audio source to the 3rd Wave’s Audio In port, press “Make Waves” and the synth samples the audio to create a custom wavetable
- Samples to convert can also be brought in as a 96 kHz wav file through USB
- Store up to 32 custom wavetables
- 64 waveforms per wavetable
- Accepts pitched or un-pitched material as input
- 96 kHz sampling rate
- 16-bit resolution
- 1024 cycles per waveform, converted automatically to cover entire keyboard range
- Flexible wave-sampling length
SEQUENCER
Performs both Note and Parameter Sequencing
- 1 song per multi-part
- 24 sequences per song
- 32 measures per sequence
- Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off)
- swing
ARPEGGIATOR
1 Arp per Multi-part
- Up, down, up/down, and assign modes
- Variable range (1, 2, or 3 octaves)
MOD MATRIX
16-slot Modulation Matrix Per Multi-Part
- 16 slot modulation matrix with 27 mod sources and 114 mod destinations
- 12 additional fixed-source mod paths
- Modulation assignment buttons enable quick and easy modulation routing
- Mod Matrix runs at audio rates
- Sequencer can record and play mod parameter changes in real time

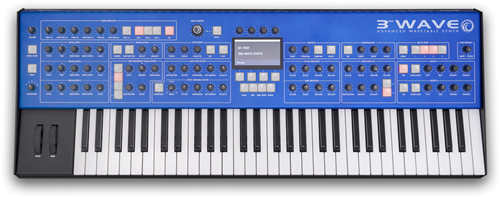

CONTROLS
- 77 knobs and 39 buttons enable deep, comprehensive editing with minimal menu diving
- Pitch and Mod Wheels
- Full-sized, five-octave, semi-weighted, premium Fatar keyboard with velocity and aftertouch
PROGRAMS
- 500 factory programs. User rewritable
IN/OUT
- 4 Stereo outputs (2x 1/4″ phone jack per part)
- Headphone out (stereo 1/4″ phone jack)
- MIDI In, MIDI Out, and MIDI Thru
- USB port for bidirectional MIDI communication
- Audio Input for creating user wavetables from external audio source (1/4″ phone jack)
- Sustain/footswitch input
- Volume pedal input
- Expression pedal input
POWER
- 1 universal IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100-240v, 50-60 Hz, 65 watts maximum power consumption
