Studio Electronics SEM Filter

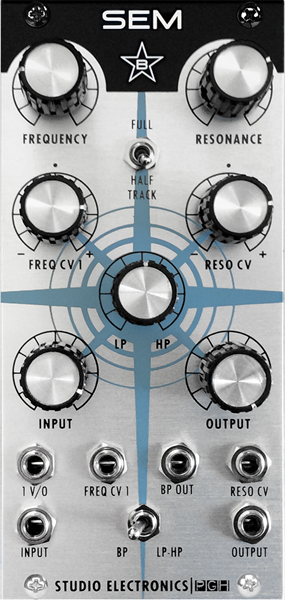

All Controls and Patch Points

• FREQUENCY – Adjusts the frequency, or cut-off of the filter.
• RESONANCE – Adjusts the resonance of the filter.
• FULL HALF TRACK – Switch between full and half keyboard/voltage tracking.
• FREQ CV 1 – Frequency control voltage 1 input attenuverter.
• RESO CV – Resonance control voltage input attenuverter.
• LP HP – Low Pass / High Pass attenuverter.
• INPUT – Adjusts the audio input.
• OUTPUT – Adjusts the audio output.
• 1 V/O – One volt per octave control voltage input.
• FREQ CV 1 – Frequency control voltage 1 input.
• BP OUT – Band Pass Output. No cable patched, BP passes through the mains.
• RESO CV – Resonance control voltage input.
• INPUT – Audio input.
• BP LP-HP – Switch between Band Pass and Low Pass - High Pass modes.
• OUTPUT – Audio output.

Vitals

• Size - 12hp
• Depth - 39.7mm with ribbon cable attached
• Power Usage - 32mA (+12 / -12)
