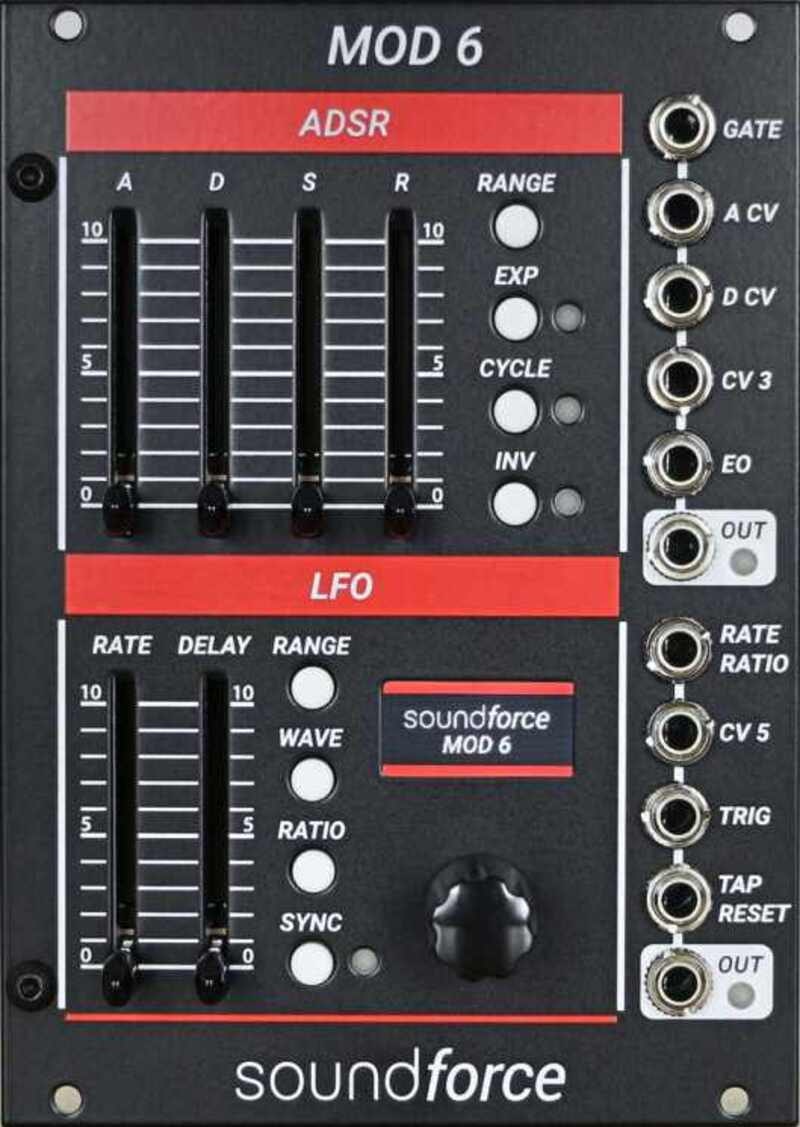

SoundForce MOD 6 Black

Parametric CV ranges:
The screen and digital UI opened up a lot of new possibilities in terms of user options. In an attempt to avoid the classic CV range mismatch between modules, MOD 6 is implementing an extremely flexible voltage range settings system. Using the screen and encoder, users are able to set custom ranges for each analog inputs and outputs, anywhere between -10V to +10V. This eliminates the need for external attenuator/polarizer modules. The user is able to harmonize CV signals amplitude and polarity between MOD 6 and other modules.

ADSR features:
– 4 time ranges (including 1 custom user range)
– Linear/exponential response (with intensity control available)
– Cycle option
– Invert option
– ADSR or AD modes
– Flexible END OF output (EOA, EOD or EOR)
– Attack CV input, decay CV input, CV 3 input (assignable to either sustain CV, release CV or ADSR output amplitude CV)

LFO features:
– 4 times ranges (including 1 custom user range)
– Juno-style DELAY triggered by TRIG input (with fade-in option)
– Morphing LFO option
– Free-running or SYNC/tap LFO modes
– Extensive clock multiplier/divider selection in SYNC mode (from 1/64 to x64)
– RATE/RATIO CV input, CV 5 input (assignable to either delay CV, waveform selection CV or LFO output amplitude CV)

Specifications:
– 18HP
– Depth: 27mm (including power connector)
– Power: +12V 103mA, -12V 6mA
