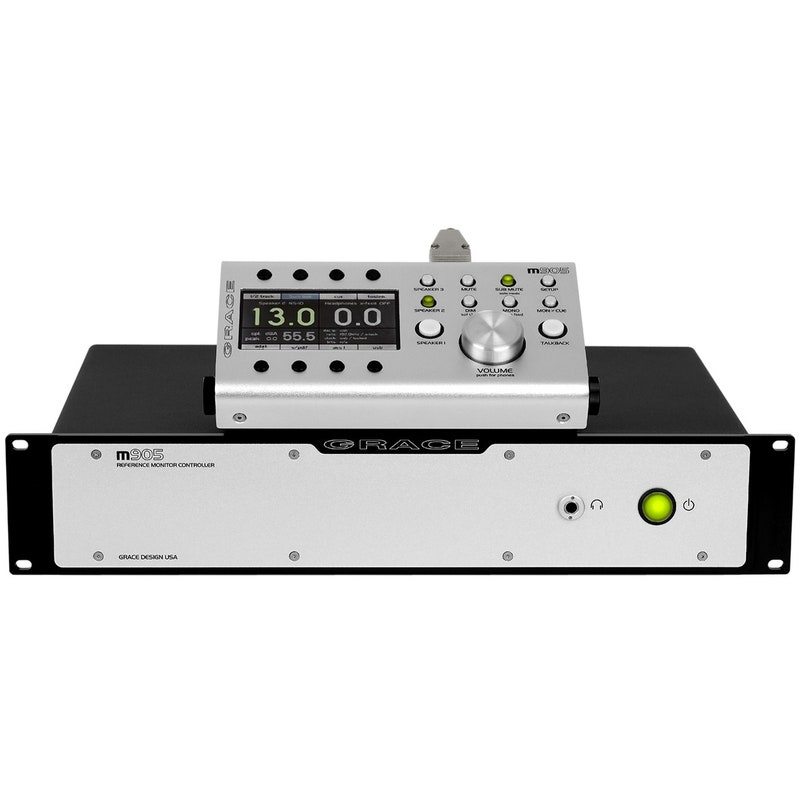

Grace Design m905 Silver
High End Monitor Controller Silver
- Analog inputs – unbalanced (standard or the optional RIAA phono input), balanced (2nd pair balanced available on m905 Analog), CUE, talkback mic
- Digital inputs – 2x AES3 (Single or dual-wire), 1 S/PDIF, 1 TOSLINK, ADAT (selectable in 4 pairs, or 2 pairs in S/MUX), USB, DSD128 (5.6448MHz)
- Audio circuitry designed for completely transparent and musical playback performance
- Asynchronous Class 2 USB playback supports up to 24 bit/192kHz
- Mastering quality DAC circuitry with configurable de-emphasis filterings-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
- Hybrid RCU with hardware switches, large level encoder and graphical LCDLCD display shows input, level, output, SPL and DAC status plus a full calibration menu
- RCU includes built in microphone for talkback and onboard SPL meter
- SPL meter features include level, peak, fast and slow modes, A & C weighting
- Precision .5 dB step level control for speakers and headphones
- Reference headphone amplifier circuitry, with outputs on both the RCU and ACU
- Dedicated mono, dim, mute and sub mute switches
- Digital loop thru outputs that can be configured to pass incoming digital signals or as a digital speaker output when monitoring digital PCM sources
- Mono mode can be set to L+R summed, L only in both channels, or R only in both channels L solo, R solo, L-R and sub solo modes are available
- 3 available stereo speaker outputs, with two assignable mono sub outputs (or single stereo sub output)
- Multi-mode SUB/ DAC/ METER out
- SUB out mode for stereo or multiple mono subwoofer outputs
- DAC out mode for a fixed DAC output fed by the selected digital input
- METER out mode fed by selected input signal (digital or analog), configurable with a fixed level or to follow the monitor level
- Detachable RCU tilt base
