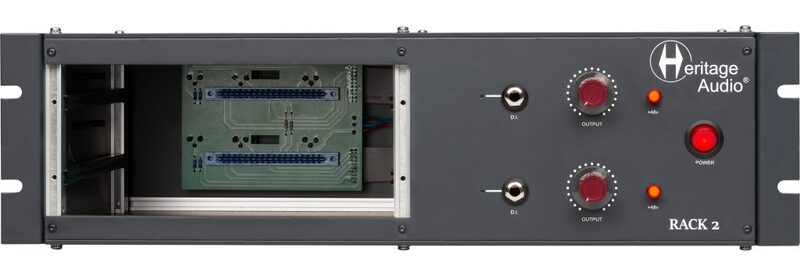

Heritage Audio Rack 2
2-module 80 Series Rack
RACK 2 is handmade in the EU employing the same exact ISEP mechanical components used in the Series 80 consoles. Aluminium rails, guides, etc. This will ensure your vintage modules, as well as any of the currently made, will fit like a glove.
Every channel has its own output control as well as illuminated phantom switch.
In addition, 2 discrete Class A ultra high impedance JFET Direct Inputs have been implemented, allowing direct plugging of hi impedance instruments.
Also, the RACK 2 is ready for linking up to two 2264 compressors in 2 busses, A or B.
Back panel features Neutrik gold plated XLR connectors for MIC and LINE inputs, as well as outputs.
External Power Supply Unit is connected via a standard IEC connector. It is configurable for 220-240 V or 110 V. Power supply is included and able to power up to four RACK 2s.
