Artikelnummer 1072103

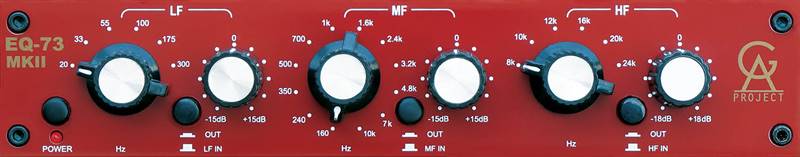

Golden Age Project EQ-73 MKII

One channel vintage style 3-band equalizer.

3495,00 kr/st
Lägg i varukorgen

Finns i butik 1-3 dagar

The class-A circuit used in the EQ-73 MKII is similar to the eq section in the classical 1073 module, without the high pass filter. Additional frequencies have been added and the mid frequency band uses two inductors, the higher value of the second one is used for the two lowest frequencies, 160 Hz and 240 Hz, to achieve a suitable response.



The sound character is warm, punchy, sweet and musical. These classic characteristics have been heard on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres. The essence of this sound is now available at a surprisingly low cost, making it available to nearly everyone.



The EQ-73 MKII has stepped frequency controls that offers a wide selection of frequencies from 20 Hz to 24 kHz.

The Low and High frequency bands are shelving and the mid frequency band is of the bell type.

The control range is +/-15 dB for the two lower bands and +/- 18dB for the high frequency band.

There are separate bypass switches for all three bands.



The EQ-73 MKII has IC-based balanced connections for self contained operation. It can also be used together with one of our PRE-73 models that has an Insert  or with other units that has a low level insert jack.

Combining a PRE-73 and an EQ-73, and using a UNITE rack kit to mount them together, one will get a 19-inch 1073-style unit at a low cost and with a great sound!



FEATURES

- Vintage Style electronics. No intergrated circuits in the main signal path

- 3-band with a dual inductor based mid frequency band

- Stepped frequency selection

- A wide selection of frequencies from 20 Hz to 24 kHz

- Control range up to +/- 18 dB

- Separate bypass switches for each band

- Tantalum capacitors in the main signal path

- Can be used together with one of our preamp´s with an insert jack or as a standalone unit

- TRS jack for the INSERT mode in- and output connection, the nominal working level is around -18 dBu

- IC-based in- and output stage for the LINE IN mode with balanced TRS and XLR connectors

- Selectable ground lift jumper

- External power supply to avoid interaction with the audio circuits

- Great sound that suits most sound sources and genres

- A solid build quality that will last many years of normal use
