Artikelnummer 1049379

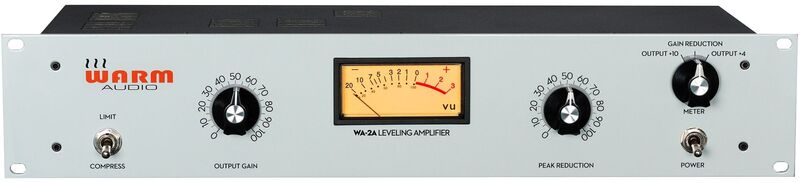

Warm Audio WA-2A

Prisvärd version av den legendariska 2A:n, limiter/compressor-switch, output gain, peak- & gain reduction

9507,00 kr/st
Lägg i varukorgen

Finns i butik 1-3 dagar

  • '2A Style, Transformer balanced, high voltage, opto (Light controlled) tube compressor
  • Fully discrete signal path
  • Utilizes custom USA made CineMag input and output transformers
  • Utilizes USA made Kenetek opto attenuator. Socketed to allow for retro-fitting with other opto-cells
  • Premium Tung-Sol and Electro-Harmonix tubes. 2x 12ax7, 1x 12bh7, 1x 6aq5 (or 6p1 - interchangeable)
  • Variable Pre-emphasis, allows for compression hipass filtering
  • Stereo-link capability
  • XLR and TRS balanced line level inputs - 600 ohms impedance
  • XLR and TRS balanced line level outputs - 600 ohms impedance
  • Frequency Response +/- 1 dB, 15 Hz to 20kHz
  • Gain 40 dB ±1dB
  • Input Level +16 dB maximum
  • Output Level +10 dB nominal, +16 dB maximum
  • Distortion Less than 0.1% THD at ±10 dBm
  • Noise  = -74dB
  • Attack Time - 10 milliseconds
  • Release Time - 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
  • Meter shows both dB gain reduction and dB output
  • Power - 115/230 volts (switchable), 50/60 Hz
  • Dimensions - 19" Rackmount chassis, 2U. 19" x 7" x 3.5"
  • Weight - 12 lbs
