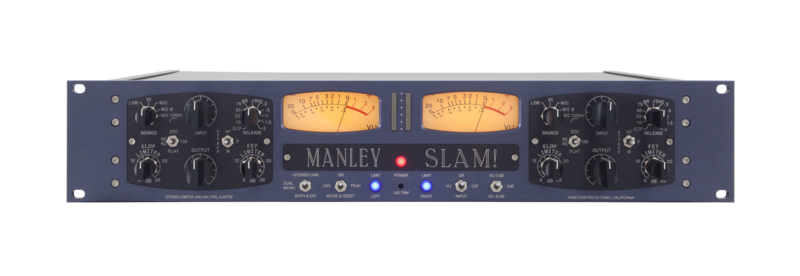

Manley Slam
Stereo Limiter & Micpreamp
Two class A mic preamps & DI’s drive two ELOP and two fast FET “brick wall” limiters to tame any tone one can throw at it. The SLAM! is jammed with tubes, transformers, technology, and tricks. Get it in, and get it LOUD.
SPECIFICATIONS
- Input Tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for lo-noise and stable bias
- Output Tubes: 2 x 12BH7 (or 6414W NOS USA) dual triodes
- I/O: MANLEY transformer coupled Balanced Inputs and Outputs
- Micpre: Selectable 48V phantom power and PHASE REVERSE
- Gain: 60dB max Micpre, 43dB max DI, 20dB max Limiter Gain
- Mic Input Impedance: 2000Ω
- DI Input Impedance: 100 kOhms or 10 megOhms (1/4” jack out halfway)
- FET Limiter: Attack: approx. 100μS; Release: 10mS to 2Sec; Ratio: better than 20:1
- ELOP Limiter: Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec; Ratio: 10:1
- Frequency Response: 5Hz to 60KHz
- Maximum Output: +32dBm, +30dBm (into 1KΩ load)
- THD+N: <.05% @ 1KHz
- Dynamic Range: 115dB typical
- Output Impedance: 200Ω
- Power Consumption Slam! Analog:
- 0.480 Amps (480 milliamps = 480mA) @ 120V = 57.6 Watts
- 0.240 Amps (240 milliamps = 240mA) @ 240V = 57.6 Watts
- Outboard Power Supply: factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
- Operating Mains Voltage: changeable with power transformer re-wiring via switch and fuse value change.
- Mains Voltage Frequency: 50~ 60Hz
- Size: 19” X 12” X 3.5” (occupies 2u)
- Shipping Weight: 25 lbs.
