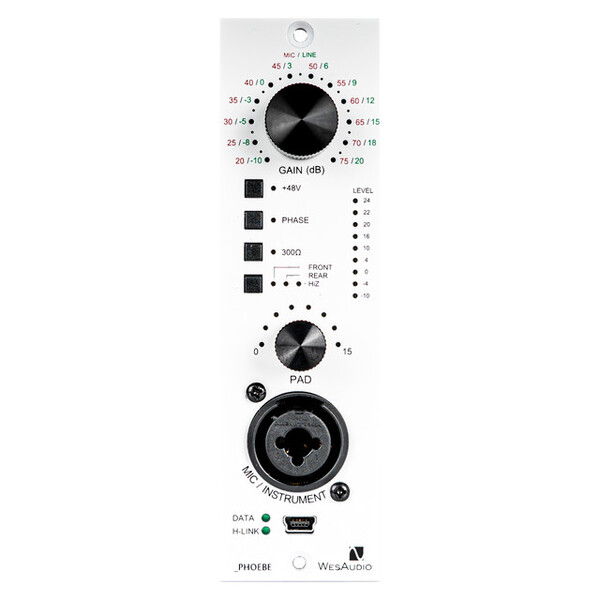

WesAudio Phoebe

Artikelnummer 1077820

1-channel Class-A microphone/instrument/line preamp with digital recall in 500 module format

I webblager. Leveranstid 3-6 dagar

Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert

9999 kr/st

8641 kr/st Kampanjpris 18 dagar, 13h kvar

Kampanjinfo

WesAudio End Of Year 2025! Until December 31

Features

100% analog microphone/line preamp with +28dBu of headroom.
Class A fully analog - inspired by famous 1073 design based on
dual amp topology.
Microphone gain up to 75dB.
Carnhill Transformers (input and output).
Output signal metering on the front panel with clip detection.
Phantom power and phase invert control.
Switchable impedance input (1200/300Ohm).
All controls/analog settings are fully manageable via the
WesAudio GCon DAW plug-in.
IRON PAD - passive output attenuation circuit with 1 dB step
(after the output transformer).
Front panel XLR/TRS socket which supports - HiZ instrument input
(TRS), line input (XLR), microphone input (XLR).
Recallable signal source to be either back XLR Socket, or front panel
XLR/TRS socket.
500 series and ng500 (e.g. _TITAN) series compatible.
Total Recall and plugin control compatible with most DAWs.
Analog automation in DAW

Specifications

Line input impedance: 5.5k ohm bridging.
Noise: unity gain (better than -100dbU) Max gain +75dB
(better than -70dbU).
EIN: better than -120dB.
Freq response: +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz.
Distortion: 0.005% at 1kHz at +20dBu output.
Max power consumption: 170mA(+16V); 100mA(-16V)
