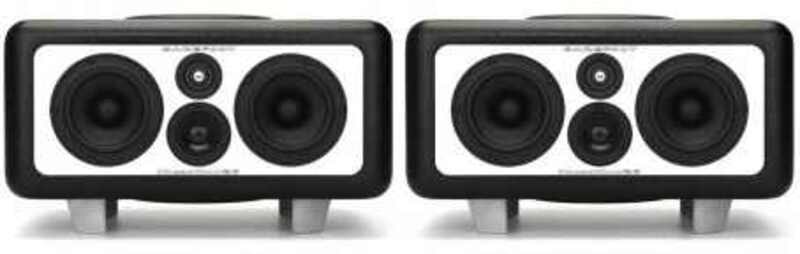

Barefoot MicroMain26
4-way active monitor with MEME Technology based on the renowned MicroMain27 Gen2 platform, with the addition of Barefoot’s incredibly transparent and detailed 2.5” aluminum cone midrange
Specifications:
- Controls: Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select
- Input Impedance: 50k Ohm
- Frequency Response: 30Hz – 45kHz (±3dB), 40Hz – 40kHz (±1dB)
- Bass Response: -3 dB @ 30Hz, Q = 0.707
- Slope = 12 dB/octave
- Cabinet: 32 liters total internal volume, Sealed subwoofer, woofer and mid enclosures, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout
- Crossover Frequencies: 100 / 800 / 4000 Hz
- Tweeter: 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber
- Amplifier: 180W Hypex
- Midrange: 2.5″ aluminum cone, Advanced geometry motor, +/- 2 mm linear excursion
- Amplifier: 180W Hypex
- Woofers: 2 x 5.25″ poly/paper cone, Advanced geometry neodymium motor, +/- 5 mm linear excursion
- Amplifier: 250W Hypex
- Subwoofers: 2 x 10″ aluminum cone with high linearity motor, +/- 13 mm linear excursion
- Amplifier: 500W Hypex
- AC Power Input: Nominal 115 VAC or 230 VAC selectable
- Power Consumption: Idle: 30W, Maximum: 650W
- Weight: Speaker: 71 lbs each (32 kg)
- Shipping: 83 lbs each (38 kg)
- Dimensions HxWxD: Cabinet: 20.5 x 9.5 x 15.5 inches (521 x 241 x 394 mm)
- Overall: 20.5 x 10.5 x 17.4 inches (521 x 267 x 442 mm)
