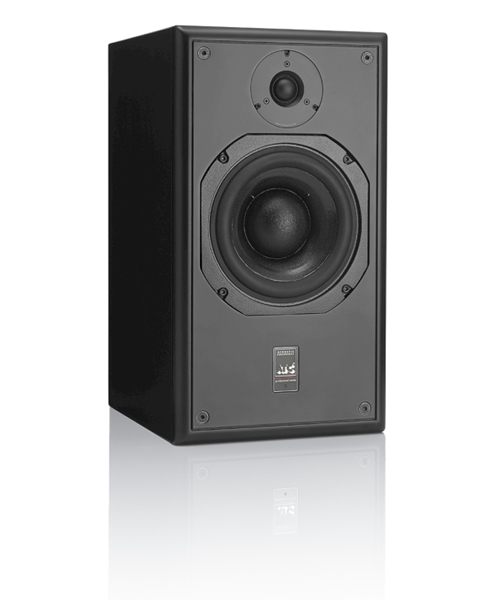

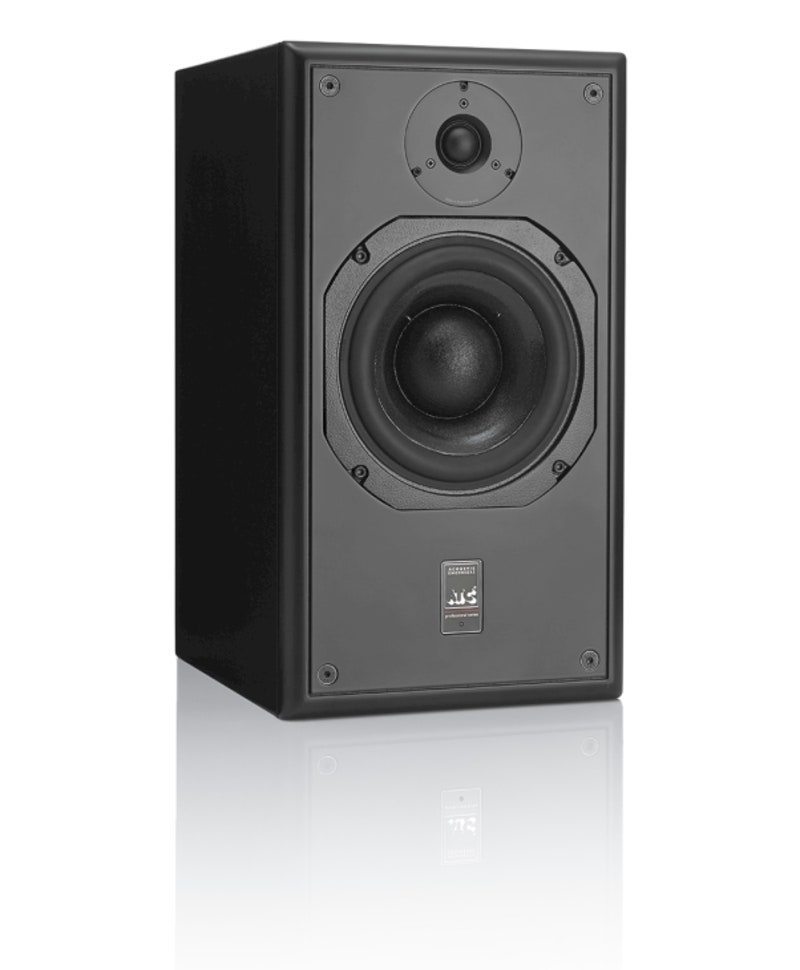

ATC SCM20PSL Pro MK2
Compact very high performance passive 2-way studio monitor
Ideally suited to:
– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms
– surround channels in medium-to-large control rooms
- Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
- Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
- Wide, even dispersion
Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
Amplitude linearity: 80Hz – 20kHz (+/-2dB)
Cut-off frequencies: 55Hz – 25kHz (-6dB freestanding)
Dispersion: +/-80° coherent horizontal, +/-10° coherent vertical
Maximum continuous SPL: 108dB (per pair @ 1m)
Crossover frequency: 2.5kHz
Recommended Amplifier Power: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Connectors: 2 x Pairs Binding Posts/4mm Plugs – Bi-Wireable
Cabinet Dimensions (HxWxD): 450x250x294mm (17.7″x9.8″x11.6″)
Weight: 18kg
