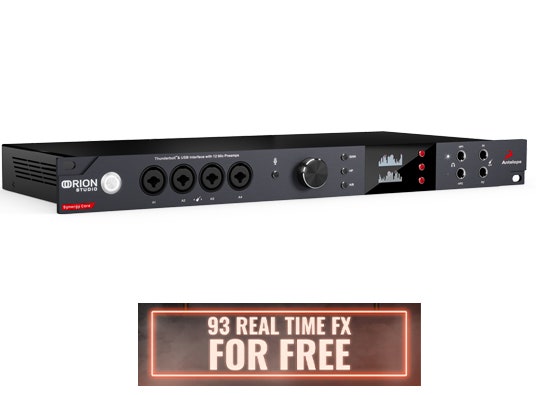

Antelope Audio Orion Studio Synergy Core
32 Channel Thunderbolt 3 & USB 2.0 Audio Interface
Artikelnummer 1062875
- Includes 50 studio effects
- Integrated FPGA for real-time calculation of effects
- Antelope 64-bit acoustically focused clocking
- 12 Discrete mic preamps with up to 75 dB gain and +48 V phantom power
- 4 Hi-Z inputs
- 2 Stereo monitoring outputs with 130 dB dynamic range - can be operated in parallel or in A / B mode
- 2 Independent stereo headphone outputs
- 2 ReAmp outputs
- 16 Line outputs via DB25
- Analogue inserts for inputs 1 & 2 (6.3mm TRS)
- S / P-DIF input / output (2x RCA)
- 2 x ADAT input / output
- DC-coupled inputs and outputs allow the transmission and reception of CV / Gate signals
- Wordclock I / O
- Extensive software control panel with flexible audio routing
- Dimensions (W x D x H): 483 x 220 x 44 mm
- Weight: 3.1 kg
- System requirements: Windows 10 (64 bit), min. OS X 10.12 (10.14 Mojave recommended)
