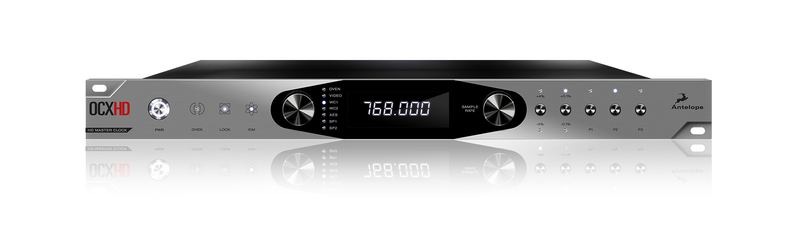

Antelope OCX HD

• Sample Rates Generated

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz

• Master Clock Outputs

10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz

• Inputs

2x Word Clock Inputs up to 768kHz
1x Video Input accepting wide range of SD and HD video signals
1x Atomic Input
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
1x USB Input for control

• Atomic Clock Input

1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz

• Humidity

30 – 80% RH non-condensing

• Clocking System

4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

• Clock Calibration

< +/-0.001 ppm

• Clock Stability

<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F

• Clock Aging

< 1 ppm per year

• Atomic Clock Input

1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC

• Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384

• Operating Temperature

0 – 50°C, 32-122°F

• Weight

2.65 kg/5.84 lb

• Dimensions

482.6 (W) х 230 (D) х 44 (H) mm
19 (W) x 9.05 (D) x 1.75 (H) inch

• Power Supply

AC Universal Input ~95-245V, 20 Watts Max
