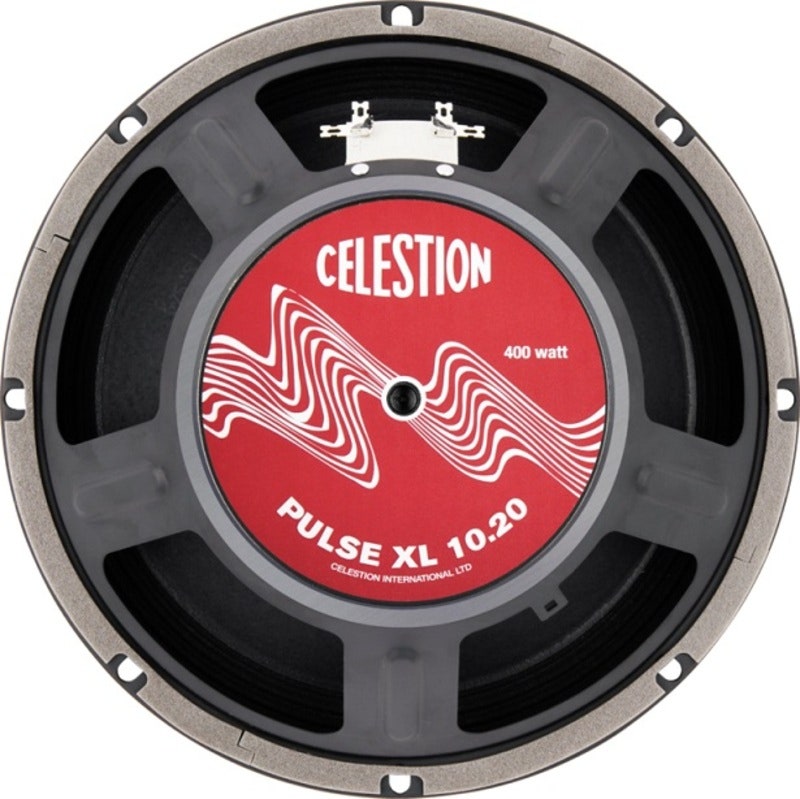

Celestion PULSE XL 10.20

Great by itself and even better in a 4×10, the PULSE XL 10.20 provides more bass than you’d ever imagine from a 10-inch speaker, along with the speed of response that makes small diameter drivers so popular with bass players that want to cut through the mix. A fabric dust dome contributes to a particularly articulate treble response.

• Nominal diameter: 254mm / 10in
• Power rating: 400W
• Rated impedance: 8Ω
• Sensitivity: 92dB
• Magnet type: Ferrite
• Voice coil diameter: 2in / 50mm
• Voice coil material: Copper
• Former material: Polyimide
• Cone material: Cellulose
• Surround material: Triple roll, cloth sealed
• Frequency range: 40-2200Hz
• Gap height (Hg): 8mm / 0.3in
• VC winding height: (Hvc)20.5mm / 0.8in
• 4kg
