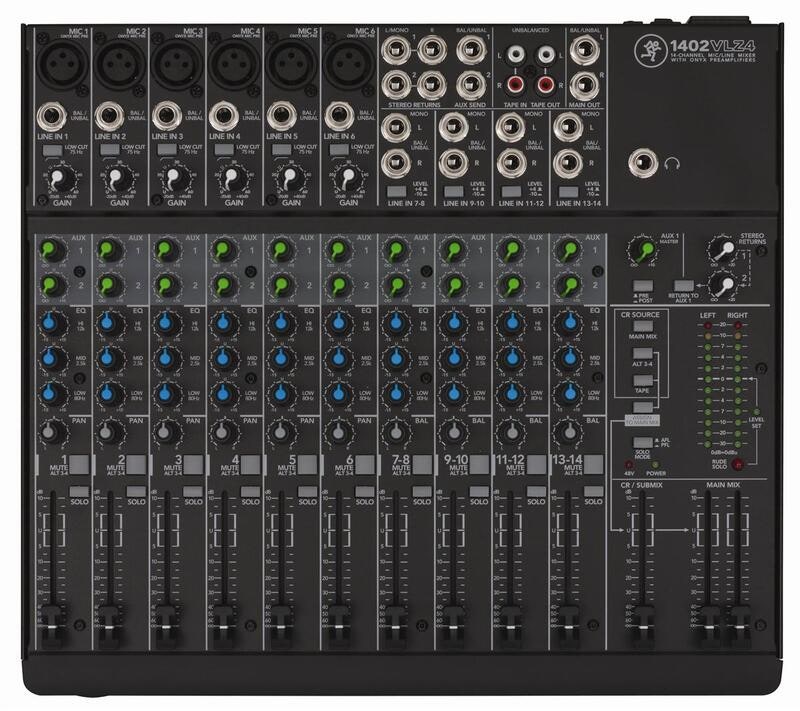

Mackie 1402 VLZ4

The 14-channel 1402VLZ4 brings the proven performance of our Onyx preamps in a professional compact mixer design great for applications that demand flexibility.
From every input to every output, the 1402VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it
is truly “Built-Like-A-Tank” with a ridiculously rugged solid-steel chasis plus high-contrast controls for ultimate tactile control.
And with features like a dedicated control room section and smooth, accurate fader control, the 1402VLZ4
is the premium choice for anybody who demands
the professional performance.

Features
14-channel mixer featuring our signature high-headroom, low-noise design
¦ 6 boutique-quality Onyx mic preamps • Ultra-wide 60 dB gain range
• 128.5 dB dynamic range
• +22 dBu line input handling
• Extended frequency response
• Distortion under 0.0007% [20 Hz – 50 kHz]
¦ Improved RF rejection, perfect for broadcast applications
¦ Phantom power for condenser mics
¦ 14 high-headroom line inputs with
+4/–10 operation control
¦ 3-band EQ (80 Hz, 2.5 kHz, 12 kHz)
¦ 18 dB/oct 75 Hz low-cut filter on mic input channels
¦ Two aux sends, level, pan and PFL solo on each channel
¦ 60 mm long-wearing log-taper faders
¦ Two stereo returns for connecting FX processor
or other stereo source
¦ ALT 3/4 stereo bus for added routing flexibility
¦ Control room / phones source matrix
¦ High-resolution 12-segment stereo meters
¦ Sealed rotary controls resist dust and grime
¦ “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
¦ High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
¦ Rack-mountable design using an optional rack ear kit
¦ Multi-voltage power supply for worldwide use
