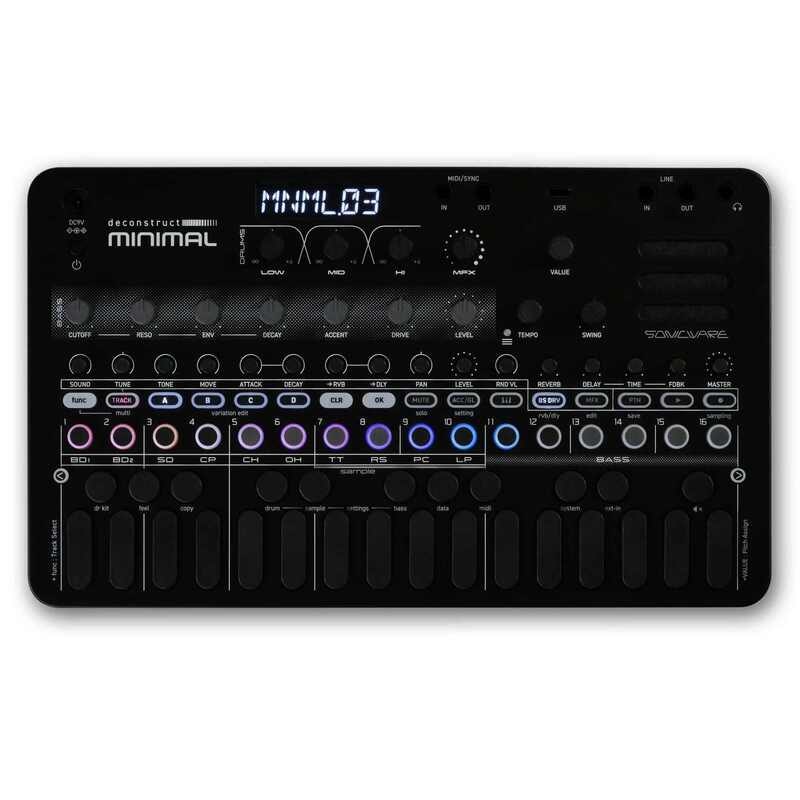

Sonicware Deconstruct MINIMAL

Specifications

Drum machine with sampler and bass synthesizer featuring 11-track construction

[Drum Machine]
• Recreates the distinctive groove of legendary drum machines, shaped by subtle rhythmic and pitch drift
• 9 tracks
• 16 drum kits
• Instruments: 10 banks - 130 sounds
• Sample-based engine with dedicated edit parameters for each bank
• BD1 and SD each feature dedicated synthesis engines
• HH recreates the characteristic sound variations of analog drum machines
• Diverse groove edits: Accent, random velocity, swing, sub-steps, etc. can be set per track
• Supports real-time recording via pads, alongside fast step input
• Equipped with an isolator for bold boosts/cuts and delicate tonal adjustment

[Sampler]
• Supports sample import/export and sampling via LINE IN or USB
• 4 tracks: sample selection on drum machine tracks 7–9, plus dedicated loop track 10
• Preset samples: 3 banks - 48 sounds
<Track 7–9>
• S2 bank: 32 slots (2-second mono samples)
• S4 bank: 16 slots (4-second mono samples)
• 48kHz / 16-bit linear PCM mono sampling
• Equipped with Repitch To Tempo to make samples follow the tempo
<Track 10>
• S8 bank: 12 slots (8-second stereo samples)
• 48kHz / 16-bit linear PCM stereo sampling
• Switchable loop / one-shot playback with crossfade setting
• Equipped with Time Stretch to match tempo or pitch without changing sample length
• During loop playback, 1–4 second crossfades and retrigger position can be set

[Bass Synthesizer]
• Newly developed analog-modeling engine based on the classic bass synthesizer
• 1 track
• 4 modeled waveforms + alternate synth mode
• Models an acid-style ladder filter
<Oscillator>
• SAW
• SQUARE
• TRIANGLE
• RECTANGLE
• Sine-wave sub oscillator for low-end reinforcement (range: -2, -1, UNISON; filter/send bypass)
• S01 mode: adjustable blend between SAW and SQUARE, with a rectangle-wave sub oscillator
<Filter>
• 4-pole low-pass filter with resonance
• Envelope amount
<Envelope generator>
• Decay (linked to the amp envelope in S01 mode)
• Decay curve adjustment
<Voice mode>
• Monophonic
• Step-input glide, with adjustable glide time and curve
• Filter-linked accent
• Adjustable gate time
• Built-in overdrive effect

[Sequencer]
• 11 tracks
• 16 steps x 4 variations (up to 64 steps by chaining A, B, C, and D)
• 128 patterns
• Step length: 1–16, Note length: 1/1 to 1/32 (can be set per track)
• Real-time & step recording
• Diverse mute functions and solo mode
• Insert-fill playback of variations
• Variation copy & paste
• Phrase rotation for shifting patterns and phrases
• Parameter Lock to record knob movements per step
• Pattern chain function
• Pattern BPM / Global BPM settings are available
• Transpose function

[Effects]
5 types of performance-oriented master effects
• Sweep Filter
• Phaser
• Distortion
• Snip Loop
• Ducking Compressor
3 types of send reverb
• Room
• Hall
• Plate
Tape-echo style send delay with BPM sync and ping-pong

[MIDI]
• Notes, Control Change, and Clock input/output

[Unit]
Matte black body finish
<Pad/Keyboard>
• 27
<Knobs>
• 12 control knobs
• 2 encoders
• 16 micro knobs
* Includes SCALE, which automatically aligns knob position and parameter value; LATCH, which does not change the value until the current value is reached; and JUMP.
<Audio in>
• LINE IN (stereo mini jack)
• USB (USB audio interface function can be disabled)
<Audio out>
• LINE OUT (stereo mini jack)
• USB (USB audio interface function can be disabled)
• Headphone out (stereo mini jack)
• Built-in speaker
<Interfaces>
• USB-C: Data transfer, MIDI/audio communication (USB audio interface function can be disabled)
• MIDI/SYNC IN jack (3.5mm stereo mini jack)
• MIDI/SYNC OUT jack (3.5mm stereo mini jack)
<Size>
297mm (W) x 176mm (D) x 48mm (H)
11.7 in (W) x 6.92 in (D) x 1.89 in (H)
<Weight>
840g
1.85lb
<Power supply>
• 9V DC output AC adapter (1A or higher, EIAJ-3 standard, inner diameter 1.7mm, outer diameter 4.75mm, center-positive)
• 6 AA batteries
*AC adapter and batteries are not included. Please use the LIVEN 9V Power Supply Unit.
