Artikelnummer 1059417

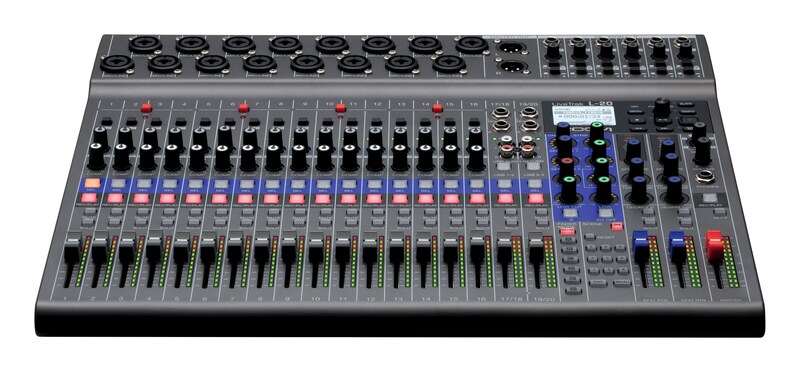

Zoom LiveTrak L-20
LiveTrak™ L-20 är en digital konsol som erbjuder allt som kreatörer behöver för att skapa en bra mix, medhörning och inspelning av komplexa ljudproduktioner. Med 20 högkvalitativa ljudkanaler och sex helt och hållet individuella monitormixar.
- 20 Discrete channels
- 16 Mono plus 2 stereo channels with XLR and 1/4" phone jacks
- Simultaneous recording of 22 tracks
- Playback of 20 tracks
- USB audio interface with 22 inputs and 4 outputs
- Audio recording up to 24-bit / 96 kHz on SD storage media
- 48V Phantom power
- Hi-Z Connectors (channels 1-2)
- 26 dB Pad (channels 3 to 16)
- Compressor per channel with one knob (channels 1 to 16)
- Solo and mute buttons for each channel
- Low cut per channel between 40 - 600 Hz variably adjustable
- Total outputs and six configurable monitor outputs
- Monitor outputs can be configured as headphone output or normal line-level output
- Additional separate headphone output
- Memory function for up to nine mixer scenes
- 20 Internal, editable chorus, delay and reverb effects
- Two effect buses
- Integrated talkback microphone
- Pre-record function
- Class-compliant operation (for iOS compatibility)
- Automatic start and stop recording possible
- Import and export of projects via the USB 2.0 interface
- Compatible functions for the ZOOM FS01 footswitch
- Dimensions (W x D x H): 445 x 388.4 x 82.6 mm
- Weight: 3.71 kg
- Includes power supply (AD-19), USB 2.0 cable and quick start guide
