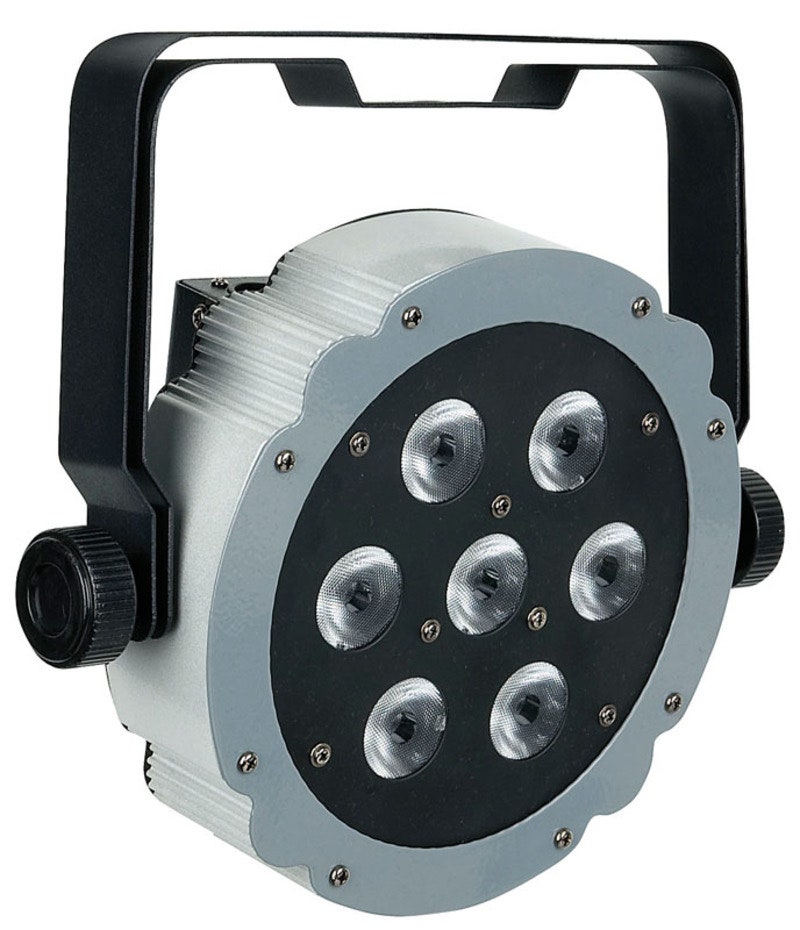

Showtec Compact Par 7 Tri



The Compact Par 7 Tri is a unique designed and compact but powerful parcan fixture. It offers full 3-in-1 RGB color-mixing ensuring vivid colors with a perfect color-mix. Due to its compact design it safes a lot of space for transportation and also in use. The Compact Par 7 has full digital addressing and offers both DMX control and sound to light function. For small applications the Compact Par 7 Tri has also a Master Slave modus.

Output
Lumens: 1540
Lux @2m: 2002
Max Distance: 20m

Light Source
LED System: 7 x 3-in-1 LED
Drive Current: 350mA
Refresh rate: 3.9KHz

Electrical
Power Supply: 100-240V AC
Power Consumption: 50W

Control
Control Mode: DMX512
DMX channels: 3,4,8

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 40°

Physical
Dimensions: 290 x 275 x 115 mm
Weight: 2,6 kg
Housing: Aluminum and iron
Color: Dark grey and Black
Power Connectors: IEC
Data Connectors: XLR 3pole
Cooling: Aluminum heat sink

Safety
Operation temperature -20~40°C
