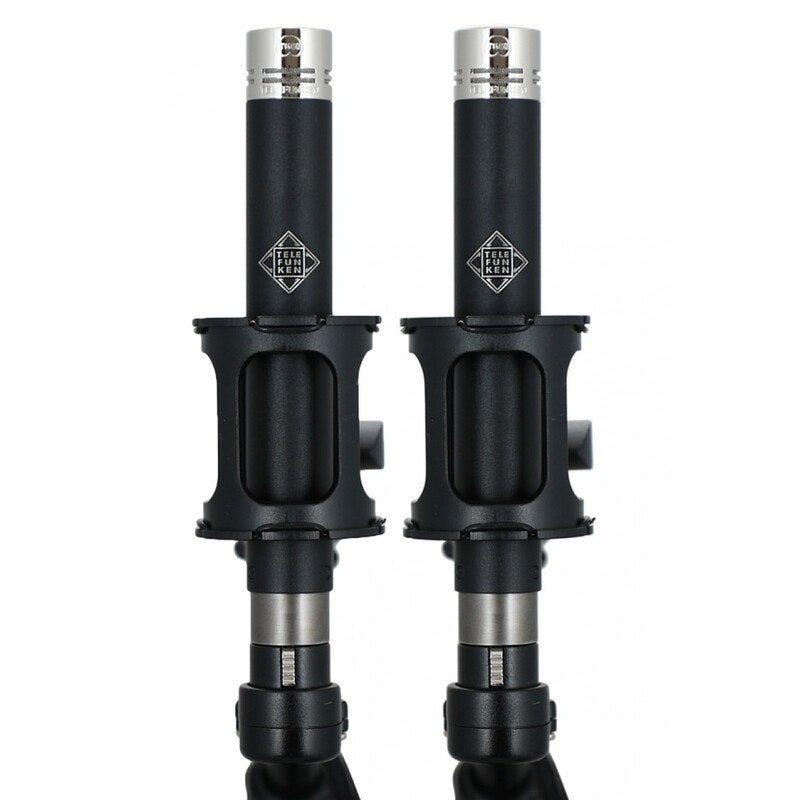

Telefunken M60 FET Cardioid Stereo-Set

The M60 FET Cardioid package includes one M60 amplifier paired with a TK60 cardioid polar pattern capsule. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.

Artikelnummer 1052647

15190,00 kr/st
Lägg i varukorgen

Finns i butik 1-3 dagar

  • Type    Pressure Gradient Condenser
  • Capsule    TK60 - 15 mm Edge Terminated Diaphragm
  • Tube Type    Active FET Transistor (No Vacuum Tube)
  • Transformer    Custom Wound Telefunken T61CT
  • Polar Pattern    Cardioid
  • Frequency Range    20 Hz - 31.5 kHz, ± 2 dB (Amplifier)
  • Sensitivity    8.6 mV/PA, ± 1db
  • THD at 1kHz at 1Pa (Amplifier)    < 0.01%
  • Output Impedance    120 Ω
  • Maximum SPL (for 1% THD)    > 130 dB
  • S/N Ratio    > 89 dBA
  • Self Noise (Amplifier)    ≤ 5 dBA
  • Dimensions / Size    140 mm L x 21 mm Dia
  • Weight    110 g
  • Current Draw from Mains    2 mA
  • Cable    SGMC-5R - 5 Meter (16.9 ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR
  • Shockmount    M 961 - Suspended Elastic Mount
  • Flight Case    ZC61 Soft Foam Zip Case, ZC62 for Stereo Set
