Artikelnummer 1078240

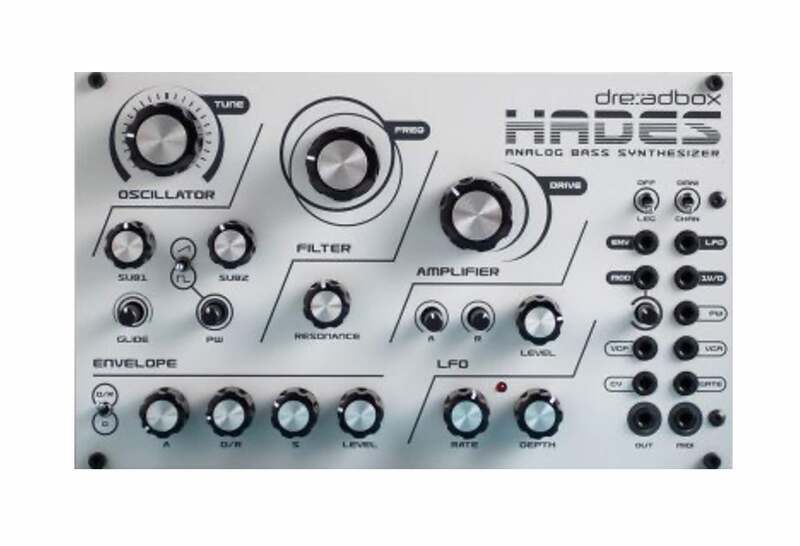

Dreadbox Hades Reissue

Analog Bass Synthesizer for Desktop & Eurorack use

4077,00 kr/st
Lägg i varukorgen

Ej i lager, kontakta oss för leveranstid

Hades with its huge sounding Oscillator, is a long awaited reissue for its loaded, dark and deep sounds, making it the mightiest Analog Bass Synthesizer.


  • Desktop standalone unit
  • Eurorack compatible
  • Full analog synth, faithful reproduction of the Hades ( produced through 2014-2016 - was limited only to 1000 units at the time)
  • Powered by a simple USB adapter for maximum portability and energy efficiency
  • 1 x VCO with 2 sub octaves
  • 2 x waveforms with PW control
  • 3-pole resonating low pass filter
  • OTA distortion
  • 1 AD/RS envelope generator and 1 AR, drastically improved from the original version - Triangle wave LFO with a very wide frequency range
  • Special internal Bass boost circuit will make this the ultimate bass engine
  • 11 patch points
  • CV outs: Envelope, LFO, Modulation wheel, 1v/ocv
  • CV ins: PW, filter CUT off, VCA, CV, GATE


- Midi interface: Midi In 3,5mm type A socket, responds to Pitch , Note On/Off, Mod wheel, Pitch wheel, and to all channels + OMNI channel (via midi learn)

- Mono audio out - Can be also used with headphones, max output is 5vpp- depending on the setting

- All patch points are 3,5mm mono action (except of the MIDI and AUDIO out)

- GATE in : 0-5V

- GATE out : 0-5v

- CV IN: +/-10v , works with 1v/ocv

- CUT cv in: +/-5v

- MOD wheel out: 0-5v

- ENV out :0-5v

- LFO out : +/-5v

- PW in : +/-5v

- VCA cv in: 0-5v

- Suggested room temperature for vco stability: 12 - 35 Celsius
