Artikelnummer 1077024

Studio Electronics Tonestar 2600

2600-Styled Synth Voice

9740,00 kr/st
Lägg i varukorgen

I webblager. Leveranstid 4-8 dagar

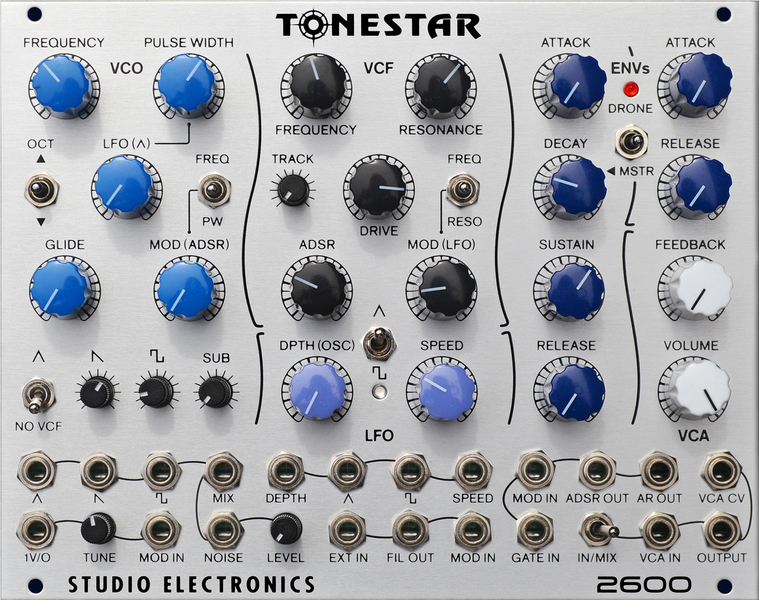

TONESTAR 2600 is an ARP® 2600-inspired synth voice 31 years in the shaping, pre-patched like Pearlman's prodigy, and fully #OutsToOuts modular, allowing for highpass/bandpass/notch filter tones, and bristling X-mod effects. Connect CV / gate and twist 'n' switch, or pull its tones and voltages apart one 3.5mm cord at a time. 26 knobs, 7 switches, and 21 jacks make for complex and satisfying signal flow, color and collisions. If it gets reedy, route the triangle wave 'round the VCF, and keep it boomin'. Out to Outs/Interesting Patches .pdf (there), in case you missed it above.


  • PCB Mounting Scheme - Through-hole.
  • Filter - Discrete, voltage controlled, 24/db/oct cascaded transconductance low-pass filter, employing six pairs of hand-matched transistors.
  • Size - 32hp.
  • Depth - 35mm including connectors.
  • Power Usage - 130mA, 80mA (+12 / -12)
