Artikelnummer 1076476

Studio Electronics 4075 Filter

2600-Toned Voltage Controlled Filter Eurorack

3566,00 kr/st
Lägg i varukorgen

Ej i lager, kontakta oss för leveranstid

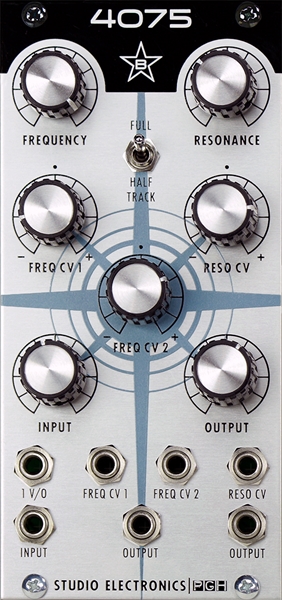

All Controls and Patch Points

  • FREQUENCY – Adjusts the frequency, or cut-off of the filter.
  • RESONANCE – Adjusts the resonance of the filter. *
  • FULL HALF TRACK – Switch between full and half keyboard/voltage tracking.
  • FREQ CV 1 – Frequency control voltage 1 input attenuverter.
  • RESO CV – Resonance control voltage input attenuverter.
  • FREQ CV 2 – Frequency control voltage 2 input attenuverter.
  • INPUT – Adjusts the audio input.
  • OUTPUT – Adjusts the audio output.
  • 1 V/O – One volt per octave control voltage input.
  • FREQ CV 1 – Frequency control voltage 1 input.
  • FREQ CV 2 – Frequency control voltage 2 input.
  • RESO CV – Resonance control voltage input.
  • INPUT – Audio input.
  • OUTPUT x2 – Audio outputs.


Vitals

  • Size - 12hp
  • Depth - 39.7mm with ribbon cable attached
  • Power Usage - 27mA, 34mA (+12 / -12)
