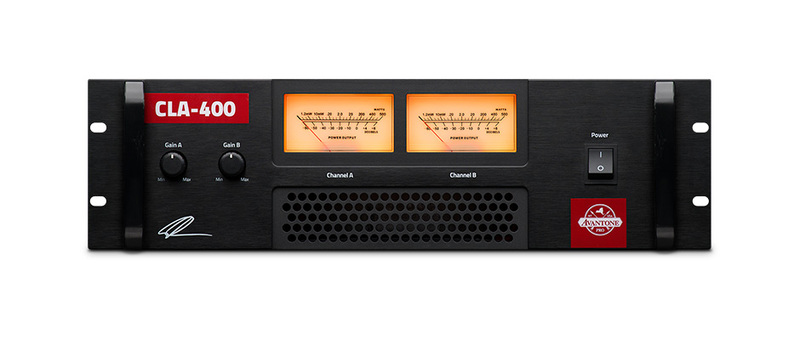

Avantone CLA-400

The Avantone Pro CLA-400 Studio Reference Amplifier is a dynamic, high output, high resolution, full-range system built the old school way; a classically designed Class A/B amplifier. We took particular care to create an amplifier in the traditional studio style, with generous VU meters, high quality Japanese components and a serious toroidal transformer linear power supply. The CLA-400 implements a classic bipolar transistor design for robust bottom end.

Specifications

• 8Ω Stereo Power (1KHz): 200W
• 4Ω Stereo Power (1KHz): 300W
• 8Ω Bridge Power (1KHz): 500W
• Slew rate (at 1KHz): 28V/us
• Input Sensitivity (1KHz): 0.775V (0dBU)
• Total Harmonic Distortion (1KHz): ＜0.1%
• Intermodulation distortion (at 10% rated power 1KHz): ＜0.1%
• Crosstalk: -70dB
• Frequency Response: 20Hz-20kHz +/- 0.5dB
• Input Impedance: (Balanced) 20KΩ (Unbalanced) 10kΩ
• Damping Factor (100Hz, 8Ω): 250
• Signal to Noise Ratio (A Weighted): >103dB
• Amplifier: Class AB
• Cabinet Dimensions: 19”w x 18”d x 5.25”h
• Weight: 22.2kg (49lb)
