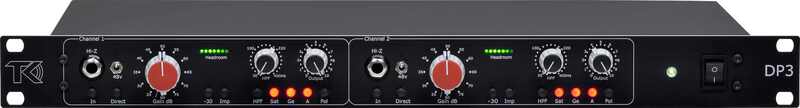

TK Audio DP3

The DP3 is a unique hybrid design including both vintage and modern circuits. The midrange crunch of the germanium sound of the mid 60’s, the low mid punch and thick sound associated with British class-A from the early 70’s as well as the more modern tone from the 80’s and 90’s.

It contains not just our well proven input stage and germanium circuit, we have also incorporated a new saturation circuit that together with the vintage class-A stage gives you lots of character choices.

Key Features:

• Hi-gain input stage with up to 80dB of gain
• Selectable vintage class-A stage
• Lundahl and Carnhill transformers
• Selectable germanium and saturation circuits for more color and harmonics
• Sweepable high-pass filter, 30-400Hz, 12dB/octave
• Instrument input with 2 Mohm impedance
• Output level placed after class-A stage
• Headroom meter with eight LED’s
