Artikelnummer 1029293

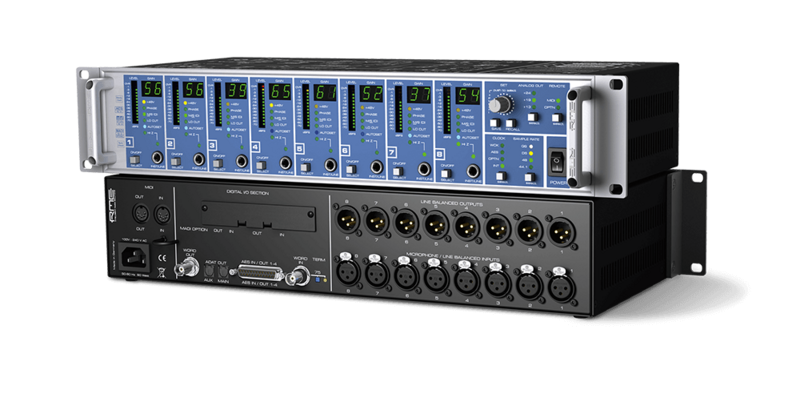

RME Micstasy
8-Channel Full Range Preamp & AD Converter
- Frequency response -0.1 dB: 20 Hz - 100 kHz
- EIN @ 30 dB Gain @ 150 Ohm: 122.3 dBu
- EIN @ 40 dB Gain @ 150 Ohm: 126.5 dBu
- EIN @ 50/60/70 dB Gain @ 150 Ohm: 127.4 dBu
- THD+N @ 30 dB Gain: < -100 dB, < 0.001 %
- Signal to Noise ratio AD (SNR) @ +30 dBu: 115.2 dB RMS unweighted, 118.5 dBA
- Signal to Noise ratio AD (SNR) @ +21 dBu: 112.7 dB RMS unweighted, 116 dBA
- Signal to Noise ratio AD (SNR) @ +13 dBu: 110 dB RMS unweighted, 113 dBA
- Sync sources: Internal, AES, word, Option (MADI)
- Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (external clocks)
- Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
- Jitter: Typical < 1 ns for internal, word clock, AES and MADI input
- Jitter suppression: >30 dB (2.4 kHz)
- Jitter sensitivity: all PLLs operate error-free even at 100 ns
- Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
- Dimensions: (WxHxD) 483 x 88 x 200 mm
- Warranty: 2 years
