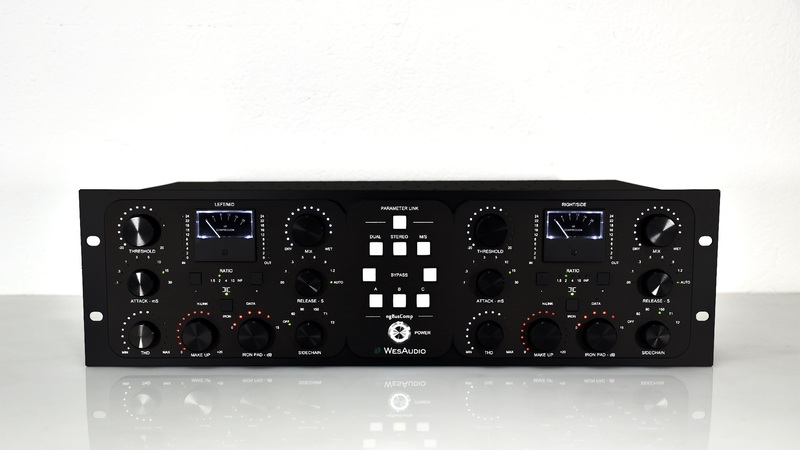

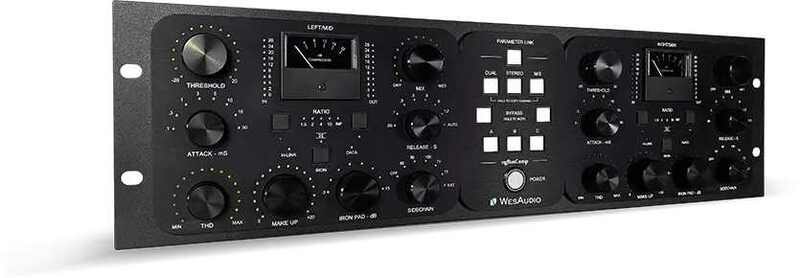

WesAudio ngBusComp

Main features summary:

• 100% analog device with +26dBu of headroom powered by QUAD VCA THAT 2181,
• Dual mono and stereo compression
• Mid-side mode
• Two selectable output stages normal(electronically balanced), IRON (transformer balanced)
• IRON PAD passive attenuator enabled in IRON mode allows to drive output transformer for musical saturation
• Flexible DAW/Live plug-in control for instant recall
• Controllable thorugh standalone WesAudio application
• Relative parameter linking for better unit management
• MIX KNOB FOR PARALLEL COMPRESSION
• Detailed metering for both channels Gain reduction, input and output
• THD Proprietary THD with precise variable control
• Side chain filters 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special “curve” designed filters
• External side chain for each channel via TRS back connector
• FIVE RATIO SETTINGS 1.5:1 and 2:1 for gentle mixbus processing, 4:1 and 10:1 for large variety of applications, and INF (crash) mode!
• Management via Ethernet or USB
• A/B/C compare feature
• TOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs.
• ANALOG AUTOMATION in DAW.
• 5 Touch sensitive encoders per each channel allow to record automation in DAW
• Fully digitally controlled and isolated analog circuit,
• True bypass,
• Free software and firmware upgrades.
• Size: 3U
