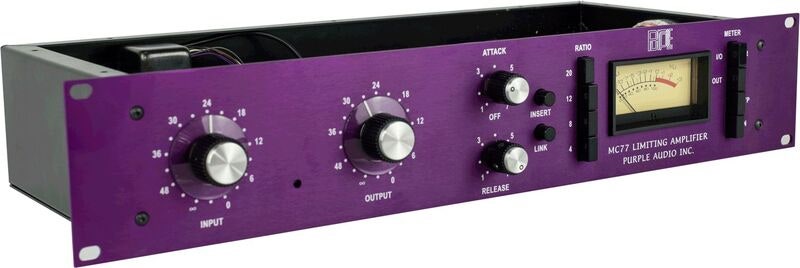

Purple Audio MC-77

Artikelnummer 1080648

The MC77 recreates the audio circuitry of the revision E 1176, using modern components matched to the original.

Finns i butik

1-3 dagar

Betala direkt, med faktura eller delbetalning - Spara kort och bankkonto - Smidigt och säkert

23995 kr/st

Discrete Transistor Audio Path Electronics
Single Element Class A Output Amplifier
Transformer Balanced XLR Inputs and Outputs
Zener Shunt Regulated Audio Power Supply
Compression Ratios – 4:1, 8:1, 12:1 and 20:1
Fast Attack Time – 20 to 800 microseconds
Release Time – 50 milliseconds to 1.1 second
Gain of 45dB (full gain with no limiting)
Ruggedized Design – PCB stiffener, chassis mounts
True Bypass via sealed relay w/front panel switch
Improved stereo linking w/front panel switch
Sidechain insert loop or key input w/front panel switch
Buffered VU meter can monitor input or output level at +4dBu
LED meter lights that don’t burn out
Heavy gauge black cold rolled steel enclosure
155v/230v operation switchable from rear panel
Purple Anodized Aluminum Front Panel
3 Year Warranty

The MC77 should be fitted with 1/4A slow-blow @ 110V, 1/8A Slow-blow @220V.
1/4A slow-blow available from Mouser or Digikey in the US.
