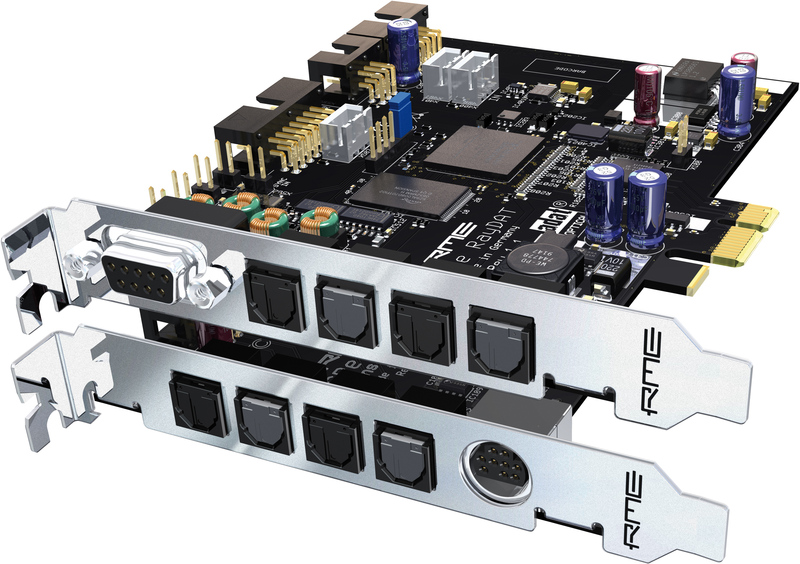

RME HDSPe RayDAT
72-Channel 24-Bit/192 kHz ADAT/AES PCI Express Card
HDSPe RayDAT is a multi-channel, multi-format and multi-task tool in stunning professional quality, the ideal solution from recording up to the final mastering. For the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. That's a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME's unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).
- 36 Inputs / 36 Outputs
- 4 x ADAT I/O (up to 192 kHz via S/MUX4)
- 1 x AES/EBU I/O (192 kHz)
- 1 x SPDIF I/O (192 kHZ)
- 2 x MIDI I/O
