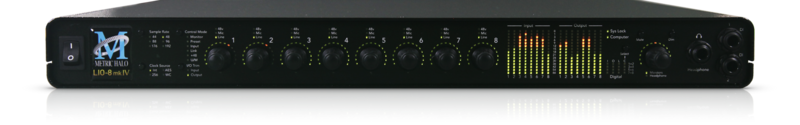

LIO-8/4p mkIV Key Hardware Features

Whether you are on location, in the studio or the mastering room, the LIO-8/4p mkIV has what it takes for you to get the job done.

LIO-8/3p mkIV is built on Metric Halo’s core 3d Technology, so it interoperates seamlessly with all existing MH 3d interfaces.

Since it is amazingly flexible, expandable and future-proof by design, your system always scales to meet your needs. Each unit includes these hardware features:

• Metric Halo’s unique 3d Core Digital Engine with MHLink
• 8 channels A/D with Analog Trim
• 8 channels D/A with Analog Gain
• Stereo Headphone
  • Dedicated HP D/A and Analog Gain
• Ultra-low converter latency
  • Converter latency reduced by 85% compared with previous generation
  • Round-trip through Converters + Mixer + DSP + Monitor:
      ≈ 0.9ms @ 44.1k
      ≈ 0.2ms @ 192k
• 4 channels MH ULN-R preamps
• 2 channels Guitar/Bass DI inputs
• 8 channels AES Output
• 8 channels AES Input
• SMPTE LTC I/O
• MIDI I/O
• 128 Channel x 64 bus mixer
• Integrated DSP
• Full support for 192k
• Detailed Front panel metering
• FP control with dedicated gain knobs
• IR Remote Control support
• MH EdgeBus Card slot
• MHLink Gigabit Ethernet connectivity
• USB-C connectivity
• Low power, cool-running design with no fans
