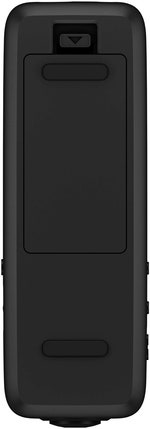

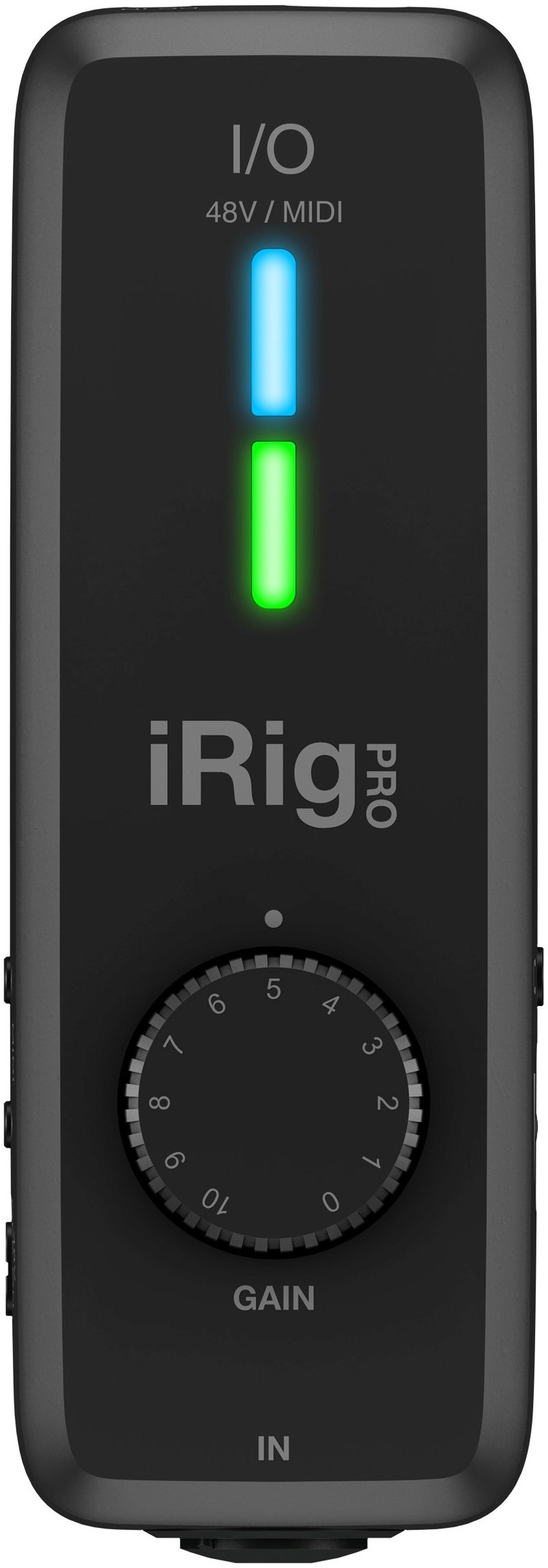

IK Multimedia iRig Pro I/O

IK Multimedia iRig Pro I/O

Now record with any of your gear on the go, and monitor in real time with any compatible device! That’s iRig Pro I/O, the ultra-compact professional quality audio and MIDI in/out for your mobile recording life! iRig Pro I/O is the next generation of the iRig Pro — the first mobile interface for connecting all of your studio gear to your iPhone, iPad, Mac, PC or Android device to play and record on the go.

iRig Pro I/O is a pocket-sized full-featured audio and MIDI interface that gives you 24-bit/96kHz recording studio quality sound everywhere you go with a few additional essential features for mobile recording. First, iRig Pro I/O is designed to be “plug and play” easy to use with all of your gear — studio mics, vocal performance mics, guitars, basses, keyboards — whatever it is, iRig Pro I/O can handle it.

Second, iRig Pro I/O features a new 1/8" stereo headphone out with preamp and level control, making it compatible with even the most recent iOS devices. Plus, when used with the optional DC power supply, iRig Pro I/O will charge your iPhone or iPad while in use for unlimited playing and recording time. iRig Pro I/O also features a new MIDI Out jack that gives you even more flexibility and control over your outboard MIDI gear.

Bottom line: iRig Pro I/O is the most versatile and intuitive “all in one” mobile interface available.

Microphone Input

• Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Microphone Input Level: from 6 mVpp to 1.4 Vpp
• Microphone Input Impedance: 3.2 kOhms
• Gain Range: 40 dB
• Phantom Power: +48V ± 4V
• Frequency Response: 20 Hz - 20 kHz +/-1.5dB
• Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

• Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
• Instrument Input Level: from 30 mVpp to 6.9 Vpp
• Instrument Input Impedance: 1 MOhms
• Gain Range: 27 dB
• Frequency Response: 20 Hz - 20 kHz +/-1.5dB
• Input Noise: -103 dB(A), -97 dB RMS

Stereo Headphone Output

• Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
• Headphone Level Power 100mW into 50 Ohms

MIDI Input/Output

• Connector: 2x2.5mm TS Jack

Other Input/Output

• DC barrel: 1x DC barrel. For power and device charging.
• Device Connector: mini-DIN



• Conversion: 24-bit A/D, 24-bit D/A
• Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Power:

• - USB bus powered when used with a computer
• - Battery powered (2xAA included) when used with an iOS device
• - DC power supply (not included, iRig PSU 3A sold separately)*

Package includes

• iRig Pro I/O universal Audio-MIDI interface
• Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
• USB-A to Mini-DIN connection cable (60cm/23.62")
• USB-C to Mini-DIN connection cable (60cm/23.62")
• 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
• 2 x 1.5V AA Battery
• Velcro strip

Dimensions: 43mm x 127mm x 37mm
Weight: ~120g (batteries excluded)
