Artikelnummer 1076465

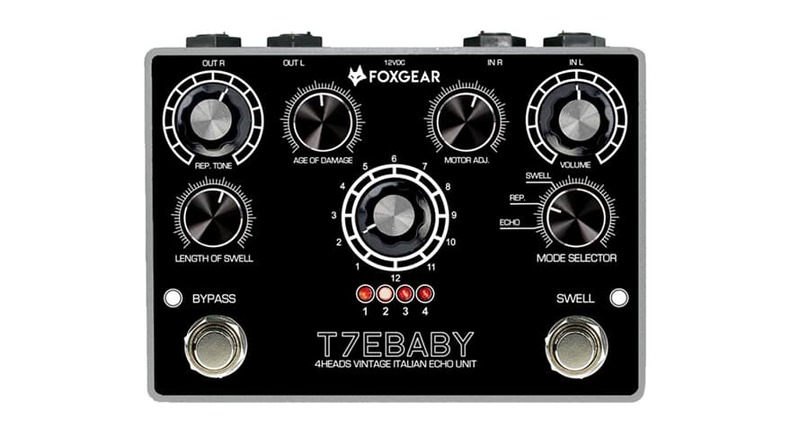

Foxgear T7E Baby

Analog / Digtal Vintage Echo Pedal

3148,00 kr/st
Lägg i varukorgen

I webblager. Leveranstid 4-8 dagar

After the great success of the FOXGEAR Echosex Baby, we pushed our next project the FOXGEAR T7E Baby to the max, expanding on the features of our famous “Binson-inspired” circuit, plus with the complete palette of options that the original Binson Echorec T7E offered, with a full 4 Heads combination, STEREO ENGINE, Three working modes Echo, Repeat, Swell, and the ability to recall the Swell mode as a “preset” with a   dedicated footswitch.
Specifications:

  • Power In 9/12VDC (negative TIP)
  • Consumption at 9V 140 mA
  • Input Impedance <=1M Ohm
  • OutputImpedance <=10K Ohm
  • Lenght 90mm. (3,5”)
  • Width 127mm. (5”)
  • Height 30mm. (1,2”)
  • Rohs Compliance Yes
  • Power Supply Not Included


Size:

  • the new FOXGEAR T7E Baby enclosure makes it one of most pedal board-friendly of the “Binson-inspired” pedals: only 3,5” x 5”!! ( 9 x 13cm.)

Connections:

  •  the FOXGEAR T7E Baby is equipped with full Stereo Input &output, and an internal stereo engine that works on a phase and split-frequency resulting in an unbelievable stereo 3D effect for an outstanding and lush ambient tone.

Switching:

  • Now available with 2 footswitches handling bypass, that is a real True Bypass assisted by relay, that lets you put it at the end of your chain between stereo pedals, and a very useful SWELL footswitch, to immediately recall the swell mode (reverb) in order to have two different presets for your ambient/echo tone.

Motor Speed Adjust:

  • along with the other cool features of the old Echosex Baby, we’ve added this control, that let you increase the overall delay time, you can mimic a slowered speed of the magnetic drum. This allows the FOXGEAR T7EBaby over 800ms of long, lush delay, keeping the 4 heads in sync, no matter what combination of head you are using.
