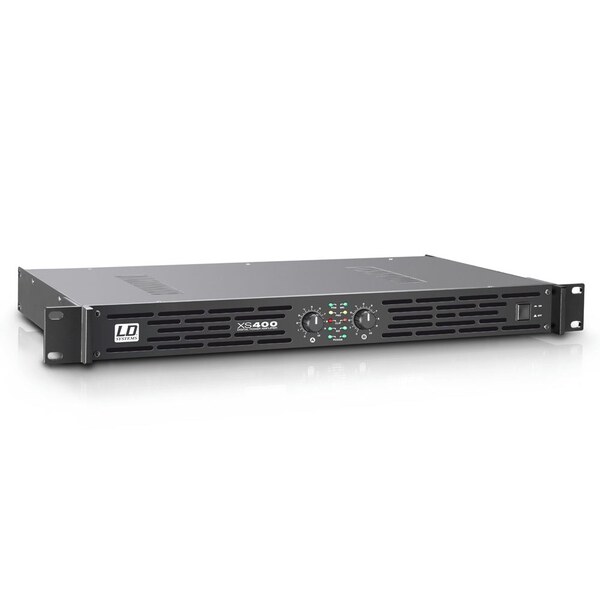

LD Systems XS 400
2x200W / 4 Ohm Class D
Smidigt klass-D slutsteg på 2x200W RMS
- Output power (1 kHz 4 ohms): 2 x 200 W
- Output power (1 kHz 8 ohms): 2 x 100 W
- Output power (1 kHz 8 ohms, bridged mode): 400 W
- Frequency response: 20 - 20,000 Hz
- THD: < 0,1 %
- Voltage gain: 32 dB / 26 dB / 28 dB
- Input sensitivity: 0.68 V / 1.4 V / 1.2 V (not passed)
- Protection: Soft-start, short-circuit, DC, overheating, overvoltage
- Controls: On/Off, Volume, Mode (bridge / parallel / stereo), Ground Lift, Limiter, Gain
- Indicators: Power, Signal, Clip, Protect, Mode (bridge / parallel)
- Line input connectors: 2 x XLR, 2 x 6.3 mm jack, chinch
- Speaker output connections: 2 x Speakon-compatible, 2 x terminal post
- Cooling System: low-noise fan
- Power supply: switching power supply
- Power Consumption Full Load: 470 W
- Operating voltage: 115 V AC / 230 V AC (switchable)
- Width: 482 mm
- Height: 44 mm
- Depth: 244 mm
- 3,8Kg
