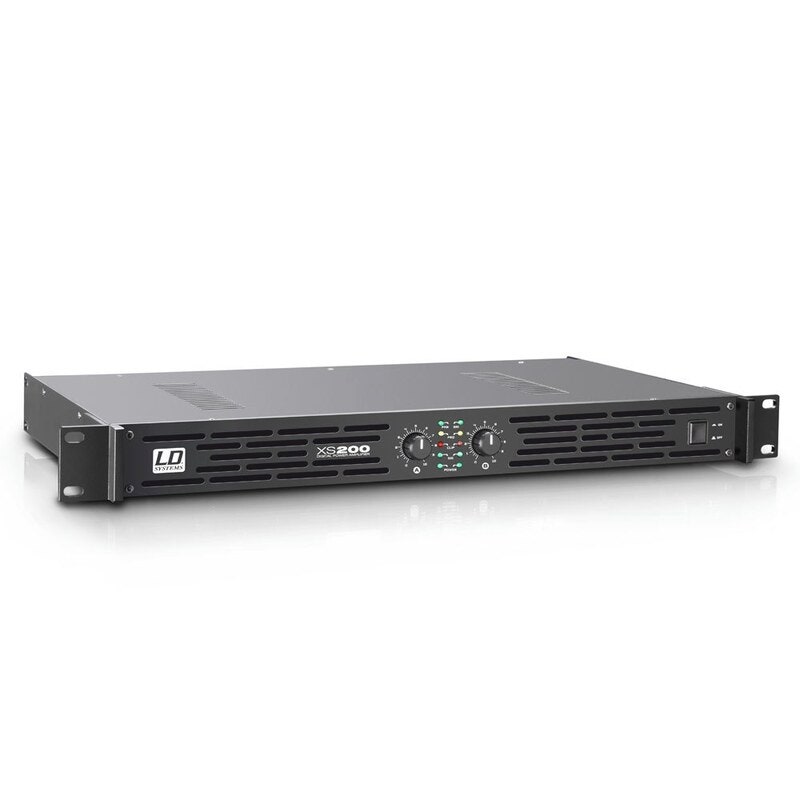

LD XS-200

Fläktlöst och smidigt klass-D slutsteg på 2x100W RMS

• Output power (1 kHz 4 ohms): 2 x 100 W
• Output power (1 kHz 8 ohms): 2 x 50 W
• Output power (1 kHz 8 ohms, bridged mode): 200 W
• Frequency response: 20 - 20,000 Hz
• THD: < 0,1 %
• Voltage gain: 30 dB / 26 dB / 24 dB
• Input sensitivity: 0.77 V / 1.1 V / 1.4 V (passed)
• Protection: Soft-start, short-circuit, DC, overheating, overvoltage
• Controls: On/Off, Volume, Mode (bridge / parallel / stereo), Ground Lift, Limiter, Gain
• Indicators: Power, Signal, Clip, Protect, Mode (bridge / parallel)
• Line input connectors: 2 x XLR, 2 x 6.3 mm jack, chinch
• Speaker output connections: 2 x Speakon-compatible, 2 x terminal post
• Power supply: switching power supply
• Power Consumption Full Load: 240 W
• Operating voltage: 115 V AC / 230 V AC (switchable)
• Width: 482 mm
• Height: 44 mm
• Depth: 244 mm
• 3,8Kg
