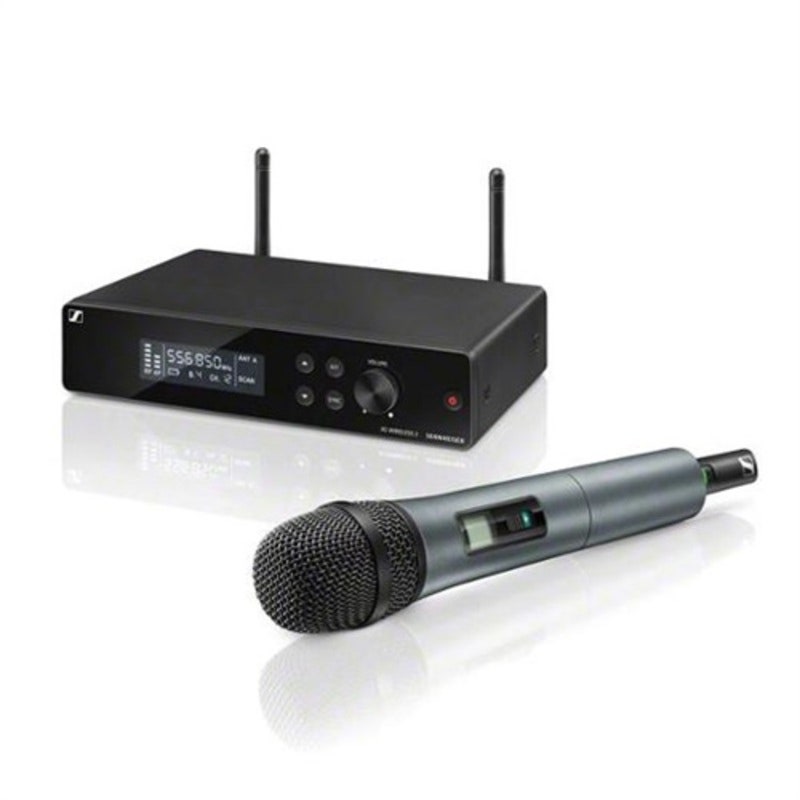

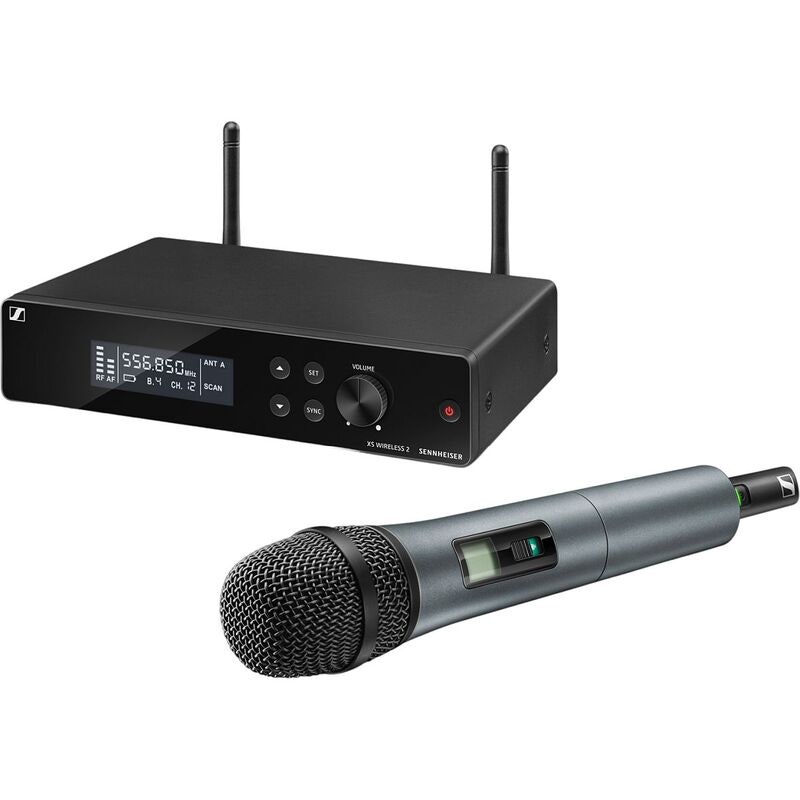

Sennheiser XSW 2-835-E

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure.
True Diversity receiver in a metal housing and rackmount kit included.
Features:

• Excellent live sound featuring Sennheiser’s renowned
• evolution microphone capsules
• True diversity receiver with metal housing
• Up to 12 compatible channels
• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via
• remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Specifications:

• Dimensions    approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
• Microphone    dynamic
• Frequency response    50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion    ≤ 0.9%
• Weight    approx. 680g
• approx. 245g
• Pick-up pattern    cardioid
• Signal-to-noise ratio    ≥ 103 dBA
• RF output power    10 mW
• Switching bandwidth    up to 24 MHz
• Operating time    approx. 10 hrs
• Modulation    wideband FM
• Power supply    12 V DC nom. / 300 mA
• 2 AA size batteries, 1.5 V
• Output voltage    1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing    Metal, microphone: robust ABS
• Frequency    8 frequency banks, each with up to 12 factory-preset channels
• Frequency range    A: 548-572 MHz
• GB: 606-630 MHz
• B: 614-638 MHz
• C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• Sensitivity    < 3 μV at 52 dB(A)rms S/N
• Squelch    switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization    2.4 GHz, Low Power OQPSK (only active during synchronization)
• Line    20 dB, switchable
• Input sensitivity    1.5 mV / Pa
• AF frequency response    50 to 16,000 Hz (–3 dB)
• 80-14,000 Hz
• Adjustment Range Transmitter    0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range    40 dB, adjustable in 5-dB steps
• Temperature Range    operation: 0°C to +40°C
• storage: –20°C to +70°C
• Receiver Principle    double superheterodyne
• Diversity principle    True Diversity
