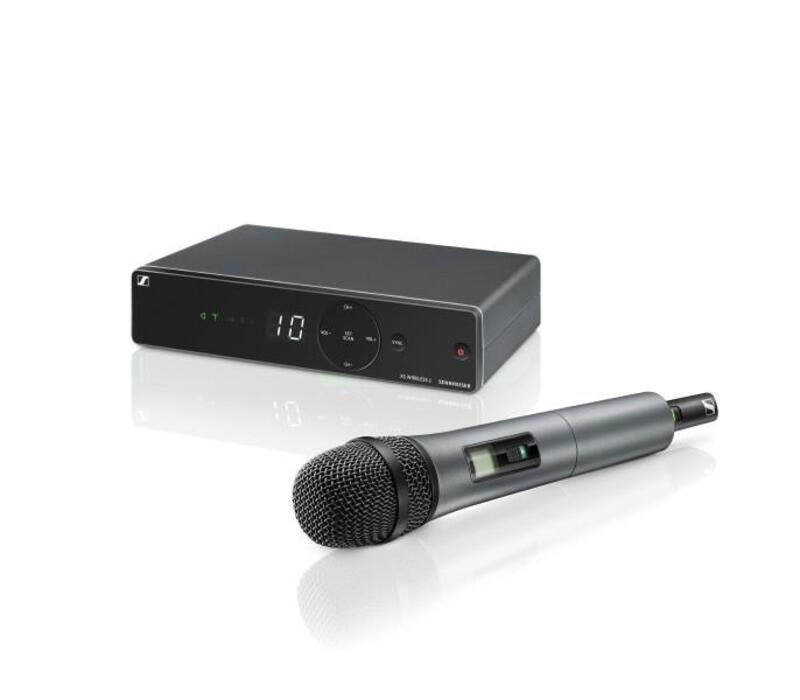

Sennheiser XSW 1 E835 E-Band
Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission. 821MHz-832MHz or 863MHz-865MHz.
The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
| Dimensions | approx. 200 x 42 x 127 mm |
| THD, total harmonic distortion | ≤ 0.9% |
| Weight | approx. 340g
approx. 245g |
| Pick-up pattern | cardioid |
| Signal-to-noise ratio | ≥ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Operating time | approx. 10 hrs |
| Modulation | wideband FM |
| Power supply | Receiver: 12 V DC nom. / 300 mA
Microphone: 2 AA size batteries, 1.5 V |
| Output voltage | 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Housing | rugged ABS housing |
| Dynamic range | dynamic |
| Frequency | 8 frequency banks, each with up to 10 factory-preset channels |
|
|
|
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Squelch | adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Input sensitivity | 1.5 mV / Pa |
| AF frequency response | Receiver: 50 to 16,000 Hz (–3 dB)
SKM 825: 80-14,000 Hz SKM 835: 80-16,000 Hz |
| Adjustment Range Transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | operation: 0°C to +40°C, storage: –20°C to +70°C |
| Receiver Principle | double superheterodyne |
| Diversity principle | Antenna switching diversity via internal antennas |
